2MP 3D Face Measurement Camera JSK-R65H31X2-V1.0 - HDR 90dB, 60fps

产品型号:

Product Overview

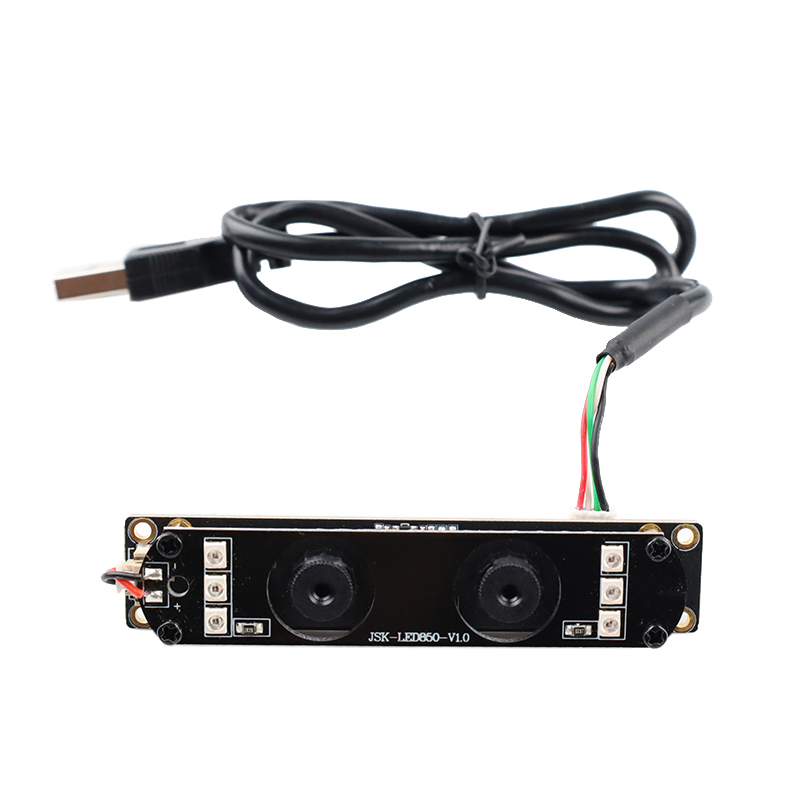

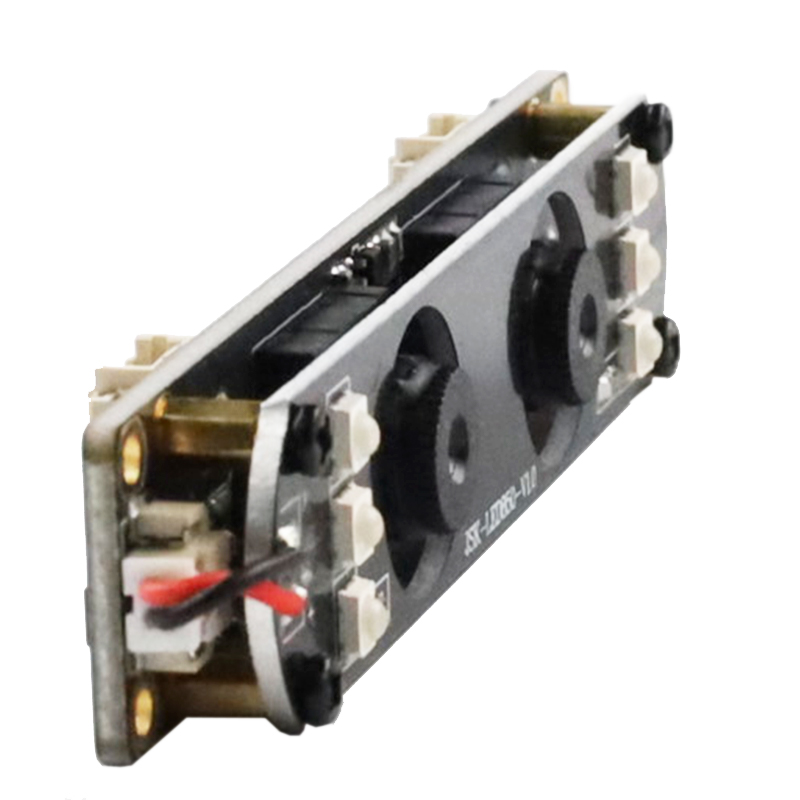

The JSK-R65H31X2-V1.0 (C01) is a binocular camera module that computes high-precision 3D face data. Its wide-dynamic dual lenses and binocular algorithm locate key facial feature points - eyes, ears, nose - and calculate spatial data such as pupil distance with error under 1mm.

Key Features

  • Binocular 3D face measurement - spatial error under 1mm
  • HM2131-AWA sensor, 2MP
  • HDR wide dynamic range ≥90dB
  • 60fps, low power design, portrait orientation

Target Applications

3D face recognition, biometric payment, high-accuracy facial measurement systems.

Contact us to discuss your project requirements.

立即咨询
产品说明

产品描述

<p> JSK-R65H31X2-V1.0(C01)竖屏 </p> <p> 1/2.7” 工业级双目高清宽动态图像传感器 </p> ∙黑白彩色最大60 帧无拖影<br /> •USB 规范的遵守<br /> •USB 2.0 和1.1 合规<br /> •UVC 架构,兼容Windows XP/7/8.1/10/vista/seven/Mac linux2.6.2(include UVC )<br /> 等多种系统<br /> •支持1080P,720P,VGA,QVGA,CIF, QVGA 和QCIF 格式输出。<br /> <p> •支持宽动态,宽动态范围100DB </p> <p> Scanning System(扫描方式) Progressive scan<br /> Scanning Frequency(H)(扫描频率) 30HZ 30HZ<br /> Scanning Frequency(V) 50HZ 50HZ<br /> Image Sensor(图像感光片) 1/2.7” CMOS 1/2.7” CMOS HM<br /> Effective Pixels(有效像素) 1920X1080 1920X1080<br /> Pixel size(像素点大小) 3.0umX3.0um 3.0umx3.0um<br /> Image sensor Data output(数据输出类型) Raw Data 10bits<br /> Video output(输出格式) MJPG/YUY2 </p> <p> IR‐LED Wavelength(红外灯光谱) 850nm<br /> Dimensions(PCBA)(PCBA 尺寸)mm 80*16*10.3 ± 0.3<br /> Operating temperature(℃)(稳定工作温<br /> 度)<br /> ‐20~65 ℃<br /> Storage temperature(℃)(储存温度&amp;湿<br /> 度)<br /> ‐10~70 ℃/0~90RH<br /> Compliance(产品标准) USB‐IF WHQL CE RoHS<br /> Lens Mount(可搭配镜头类型) 3.6MM/4.7MM/6MM </p> <p> <br /> </p> <p> <img src="/Uploads/202112/61bffff711ff3.jpg" /> </p> <p> <img src="/Uploads/202112/61bffff836d65.jpg" /> </p> <p> <br /> </p>
