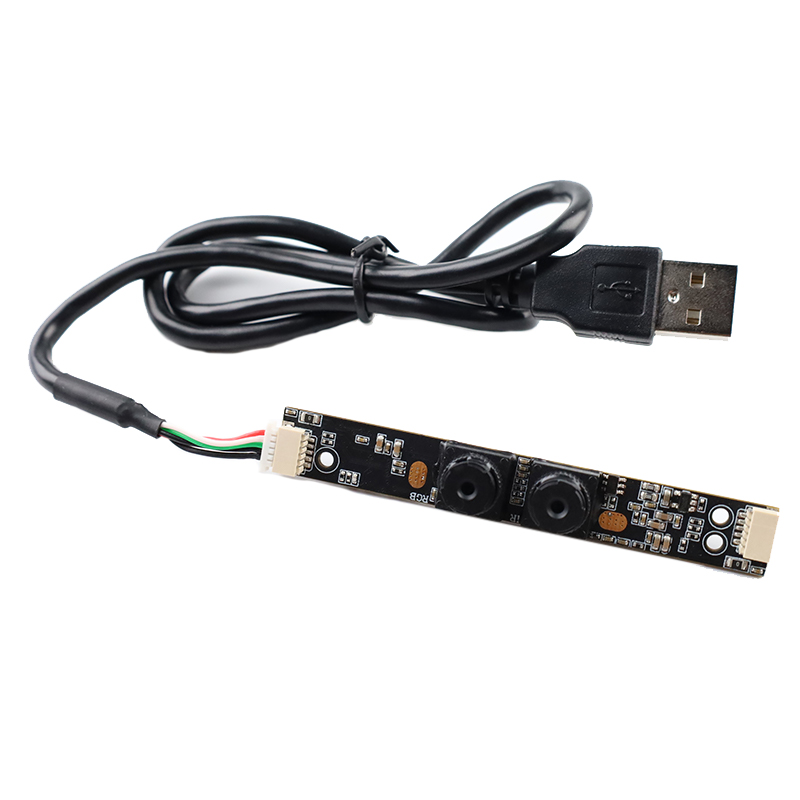

2MP Binocular USB Camera JSK-RB057-V1.0 (C01) - 850nm IR, 60fps

产品型号:

Product Overview

The JSK-RB057-V1.0 (C01) is a portrait-orientation binocular camera module with HD wide dynamic imaging. Its dual lenses work with 850nm infrared illumination at up to 60fps, switching between color and black-and-white output.

Key Features

  • Binocular dual-lens, 1/2.7-inch, 2MP
  • 850nm IR-LED wavelength for night imaging
  • 60fps high frame rate, color and B&W output
  • Wide dynamic range, portrait (vertical) orientation

Target Applications

Face liveness detection, night-time biometric terminals, portrait kiosks.

Contact us to discuss your project requirements.

立即咨询
产品说明

产品描述

<p> JSK-RB057-V1.0(C01)竖屏 规格参数 </p> Signal 2M B/W 2M HDR REMARKS<br /> Scanning System(扫描方式) Progressive scan<br /> Scanning Frequency(H)(扫描频率) 30HZ 30HZ<br /> Scanning Frequency(V) 50HZ 50HZ<br /> Image Sensor(图像感光片) 1/2.7” CMOS 1/2.7” CMOS HM<br /> Effective Pixels(有效像素) 1920X1080 1920X1080<br /> Pixel size(像素点大小) 3.0umX3.0um 3.0umx3.0um<br /> Image sensor Data output(数据输出类型) Raw Data 10bits<br /> Video output(输出格式) MJPG/YUY2<br /> Maximum Frame Rates(B/W)<br /> (分辨率和帧率)<br /> 1920x1080 at 30fps<br /> 1280x960 at 30fps<br /> 1280x720 at 30fps<br /> 1024x768 at 30fps<br /> 800x600 at 30fps<br /> 640x480 at 30 fps<br /> 352x288 at 30fps<br /> 320x240 at 30fps<br /> 160x120 at 30fps<br /> 1920x1080 at 5fps<br /> 1280x960 at 5fps<br /> 1280x720 at 10fps<br /> 1024x768 at 10fps<br /> 800x600 at 20fps<br /> 640x480 at 30 fps<br /> 352x288 at 30fps<br /> 320x240 at 30fps<br /> 160x120 at 30fps<br /> MJPG<br /> Maximum Frame Rates(HDR)<br /> (分辨率和帧率)<br /> 1920x1080 at 30fps<br /> 1280x960 at 30fps<br /> 1280x720 at 30fps<br /> 1024x768 at 30fps<br /> 800x600 at 30fps<br /> 640x480 at 30 fps<br /> 352x288 at 30fps<br /> 320x240 at 30fps<br /> 160x120 at 30fps<br /> 1920x1080 at 5fps<br /> 1280x960 at 5fps<br /> 1280x720 at 10fps<br /> 1024x768 at 10fps<br /> 800x600 at 20fps<br /> 640x480 at 30 fps<br /> 352x288 at 30fps<br /> 320x240 at 30fps<br /> 160x120 at 30fps<br /> YUY2<br /> SNR max(信噪比) ≥41dB ≥41dB<br /> Dynamic range(动态范围) ≥90dB ≥90dB<br /> Min. Illumination(最低照度) ≥0.01LUX at F1.2 ≥0.1LUX at F1.2 NO LED<br /> Digital interface(连接接口) 4‐pin 1.25mm USB2.0<br /> Transfer rates(接口速度) 480Mb/S<br /> <p> Power requirements(电源) 5V±5% </p> <p> <img src="/Uploads/202112/61be9fd802588.jpg" alt="" style="white-space:normal;" /> </p>
