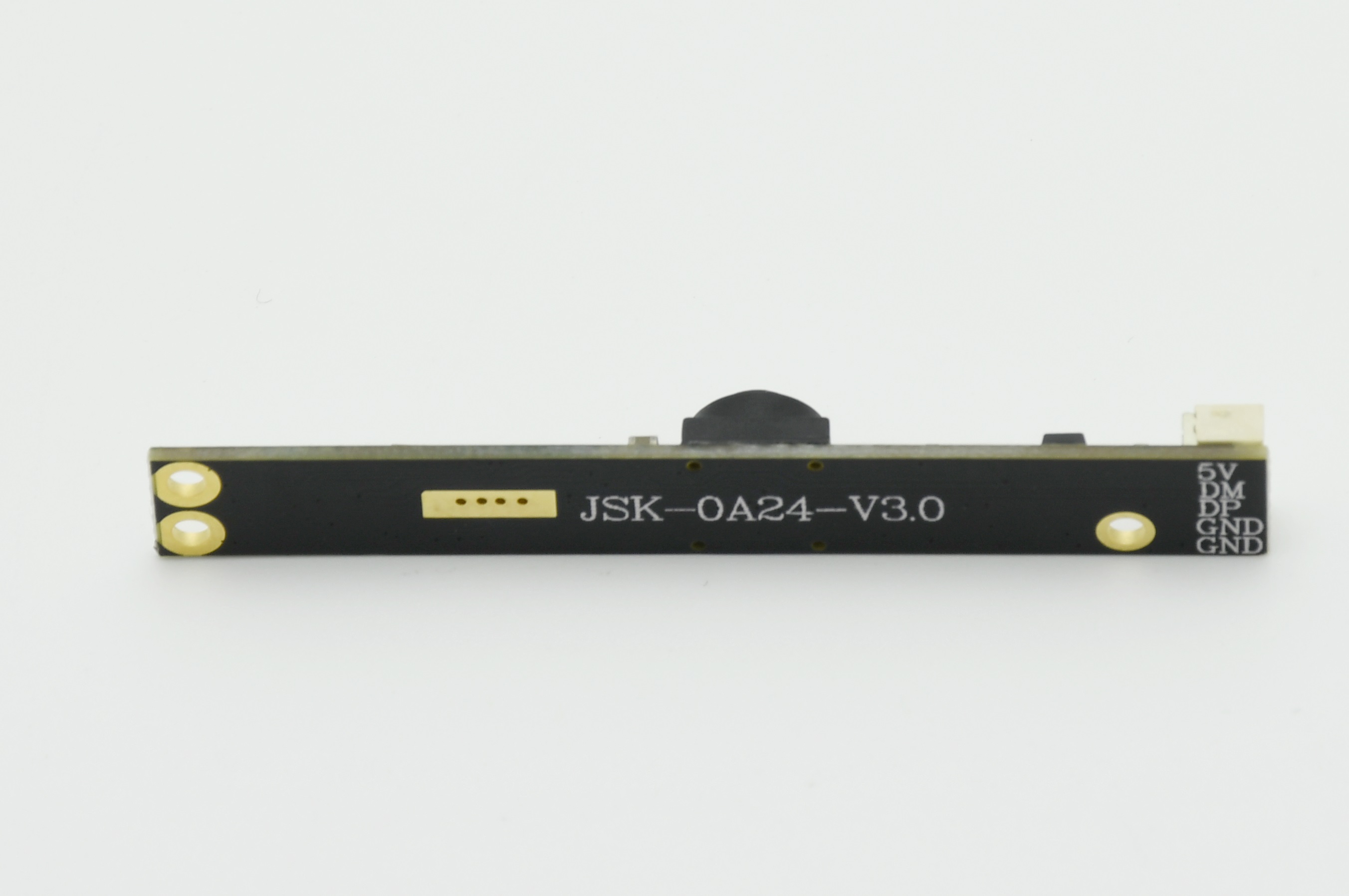

1MP USB Camera Module JSK-0A24-V3.0 - Low Cost, Wide Angle, UVC

Product Model:

Product Overview

The JSK-0A24-V3.0 (portrait) is a low-cost 1MP wide-angle USB camera module on a 1/4-inch CMOS sensor. It outputs 30fps@480P with 720P, VGA and QVGA formats over driver-free UVC.

Key Features

  • 1/4-inch CMOS sensor, 1MP
  • 30fps @ 480P - supports 720P/VGA/QVGA formats
  • Low cost wide-angle design, portrait orientation
  • UVC V1.1 compliant - USB 2.0/1.1, high-speed/full-speed auto switching

Target Applications

Cost-driven devices, portrait kiosks, entry-level wide-angle imaging.

Contact us to discuss your project requirements.

click to consult
Product Specification

Description

JSK‐0A24‐V3.0/ 竖屏

Optical size 1 / 4 "inch COMS sensor

Sensor resolution 1280 (H) x 720 (V), uxga
Unit pixel size 1.75um
Color filter RGB Bayer pattem
Shutter type electronic rolling shutter
Max.capture frame rate 30 fps@SVGA ,30FPS/720p.
Maximum video frame rate 30fps@480P
Viewing angle d = 142 ° h126 ° v91 °
Aperture 2.4
AEC / gain / White Balance Auto
The focusing distance is fixed at 100cm
USB interface 2.0
Power supply DC 5V
Dimensions (mm) 60mm x 8rnm x 10.7mm ± 0.2mm
Operating temperature: - 20 ° C to + 70 ° C
Operating system requirements: Windows XP, Windows Vista, Windows 7, Android five point one
Maximum pixel rate 30mp / S

Accuracy of ADC 10 ‐ bit
