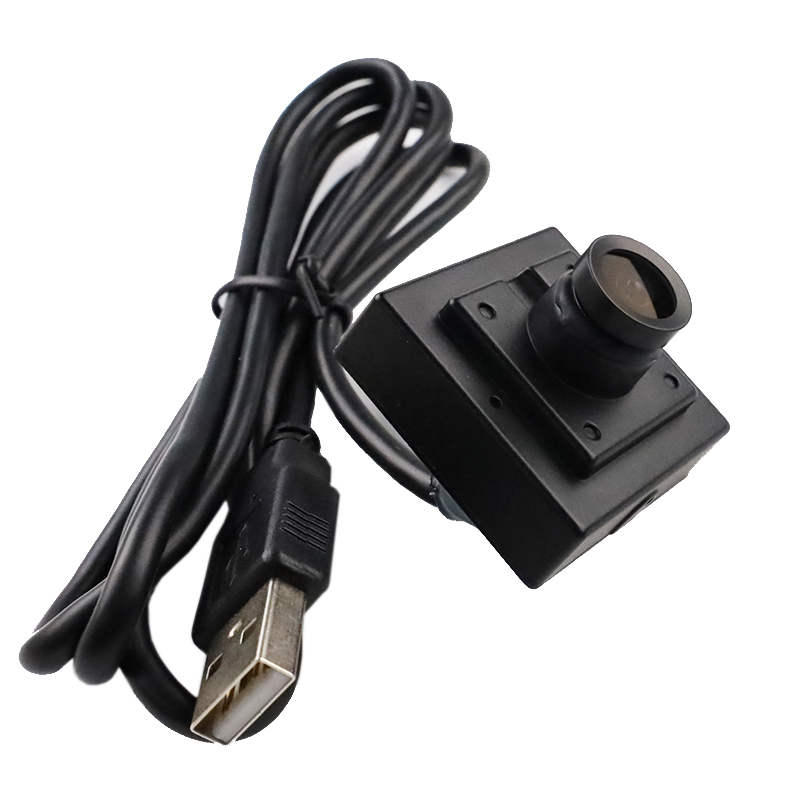

720P USB Camera Module JSK-WK38 - OV9712, 120° Wide, Low Cost

Product Model:

Product Overview

The JSK-WK38 is a low-cost 720P USB camera module built on the OV9712 1/4-inch sensor. Its 120-degree wide-angle lens captures at 30fps - wide coverage at an entry-level price.

Key Features

  • OV9712 sensor, 1/4-inch
  • 1MP 720P at 30fps
  • 120-degree wide angle
  • Low cost for volume projects

Target Applications

Budget monitoring devices, wide-coverage imaging, cost-driven embedded products.

Contact us to discuss your project requirements.

click to consult
Product Specification

Description

JSK-WK38

Optical size 1 / 4 "inch COMS sensor

Sensor resolution 1600 (H) x 1200 (V), uxga
Unit pixel size 1.75um
Color filter RGB Bayer pattem
Shutter type electronic rolling shutter
Max.capture frame rate 10fps@full resolution, 30 fps@SVGA ,30FPS/720p.
Maximum video frame rate 30fps@VGA
Viewing angle 120 °
Aperture 2.6
AEC / gain / White Balance Auto
The focusing distance is fixed at 100cm

USB interface 2.0
