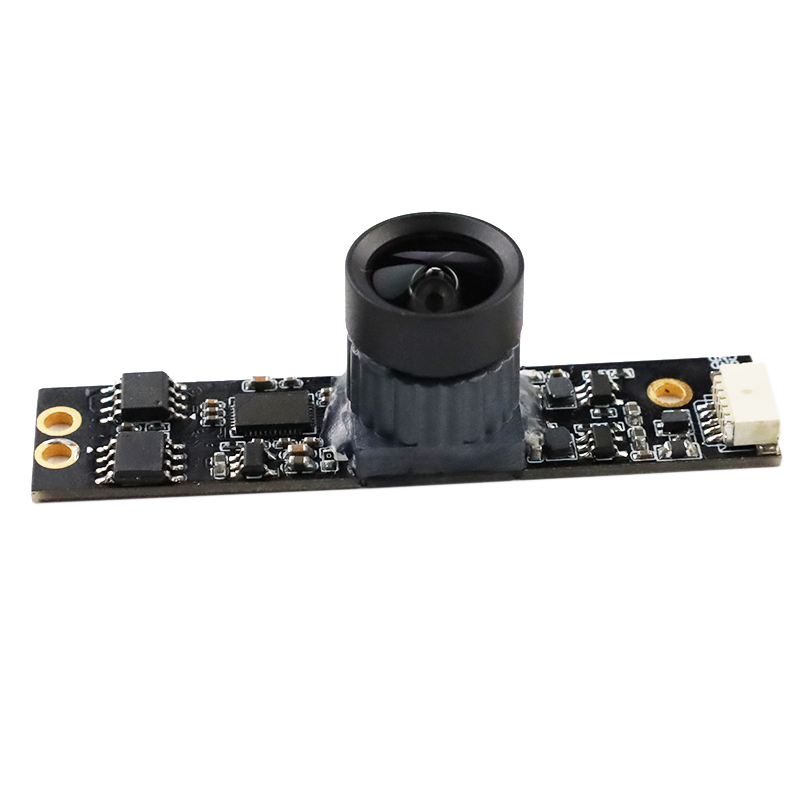

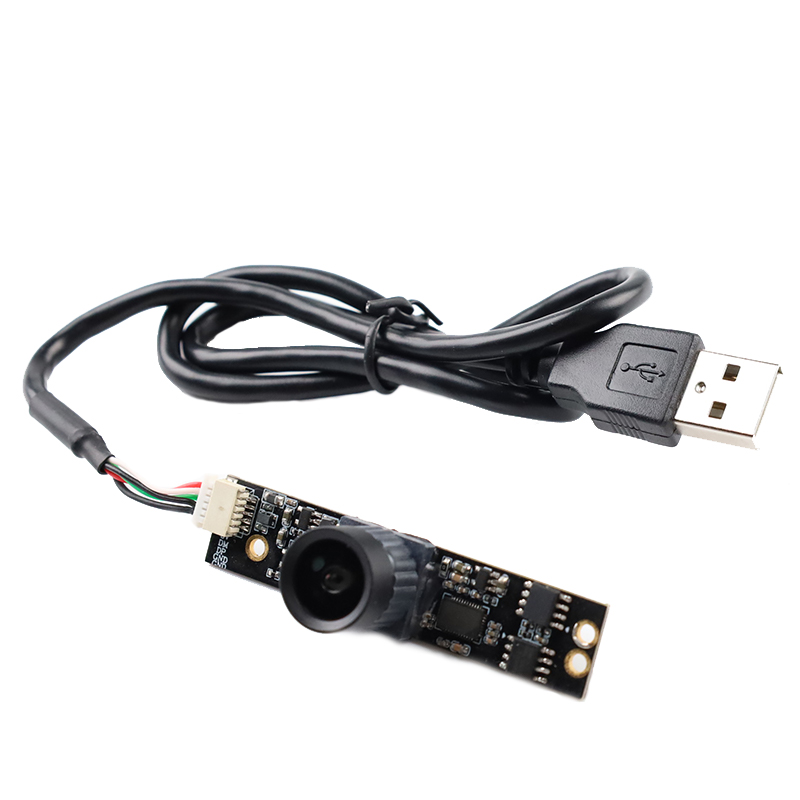

2MP USB Camera Module JSK-LA073-V1.0 (G05) - WDR 105dB, 2K, UVC

产品型号:

Product Overview

The JSK-LA073-V1.0 (G05) is a 2MP USB camera module with 105dB wide dynamic range. Based on a 1/2.7-inch CMOS sensor, it outputs 2K/1080P at 30fps with automatic exposure, automatic white balance and anti-flicker correction - clean, stable images in changing indoor light.

Key Features

  • 2MP, 30fps - 2K/1080P/720P/VGA/QVGA/CIF/QCIF output formats
  • Wide dynamic range 105dB
  • Auto exposure + auto white balance + anti-flicker
  • UVC V1.1, USB 2.0/1.1 high-speed/full-speed auto switching

Target Applications

Indoor recognition terminals, flicker-prone lighting sites, HD vision devices.

Contact us to discuss your project requirements.

立即咨询
产品说明

产品描述

<p> JSK-LA073-V1.0(G05) </p> <p> 光学尺寸1/2.7英寸COMS传感器 </p> 传感器分辨率1920(H)x 1080(V),<br /> 单位像素大小3.0*3.0微米<br /> 彩色滤光片RGB拜耳模式<br /> 快门式电子卷帘<br /> 最大帧速率30fps@2K<br /> 视角D65°H52°V39°<br /> 孔径2.4MM<br /> AEC/增益/白平衡自动<br /> 对焦距离固定在50-150厘米之间<br /> 接口USB 2.0<br /> 电源直流5V±5%<br /> 尺寸(毫米)60毫米x13毫米x10±0.2毫米<br /> 工作温度-10℃~+65℃<br /> 操作系统要求Windows XP、Windows Vista、Windows 7、android。等等<br /> 焦距5mm功耗待机30mA士5mA<br /> <p> 操作165mA士1920x1080/30fps时为5mA </p> <p> <br /> </p> <p> <img src="/Uploads/202201/61d6fb2bb3355.jpg" /> </p> <p> <img src="/Uploads/202201/61d6fb2ce35c3.jpg" /> </p> <p> <br /> </p>
