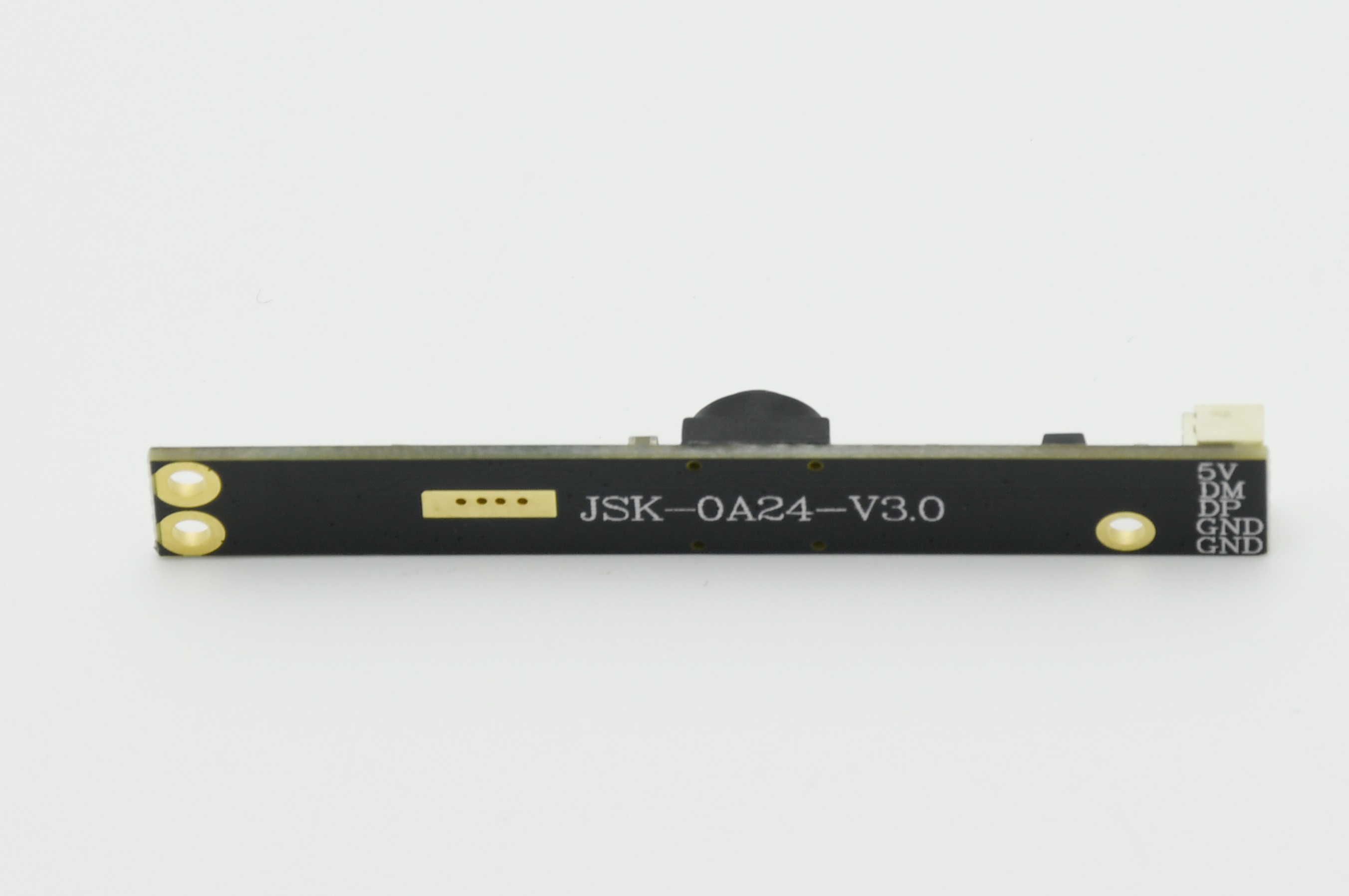

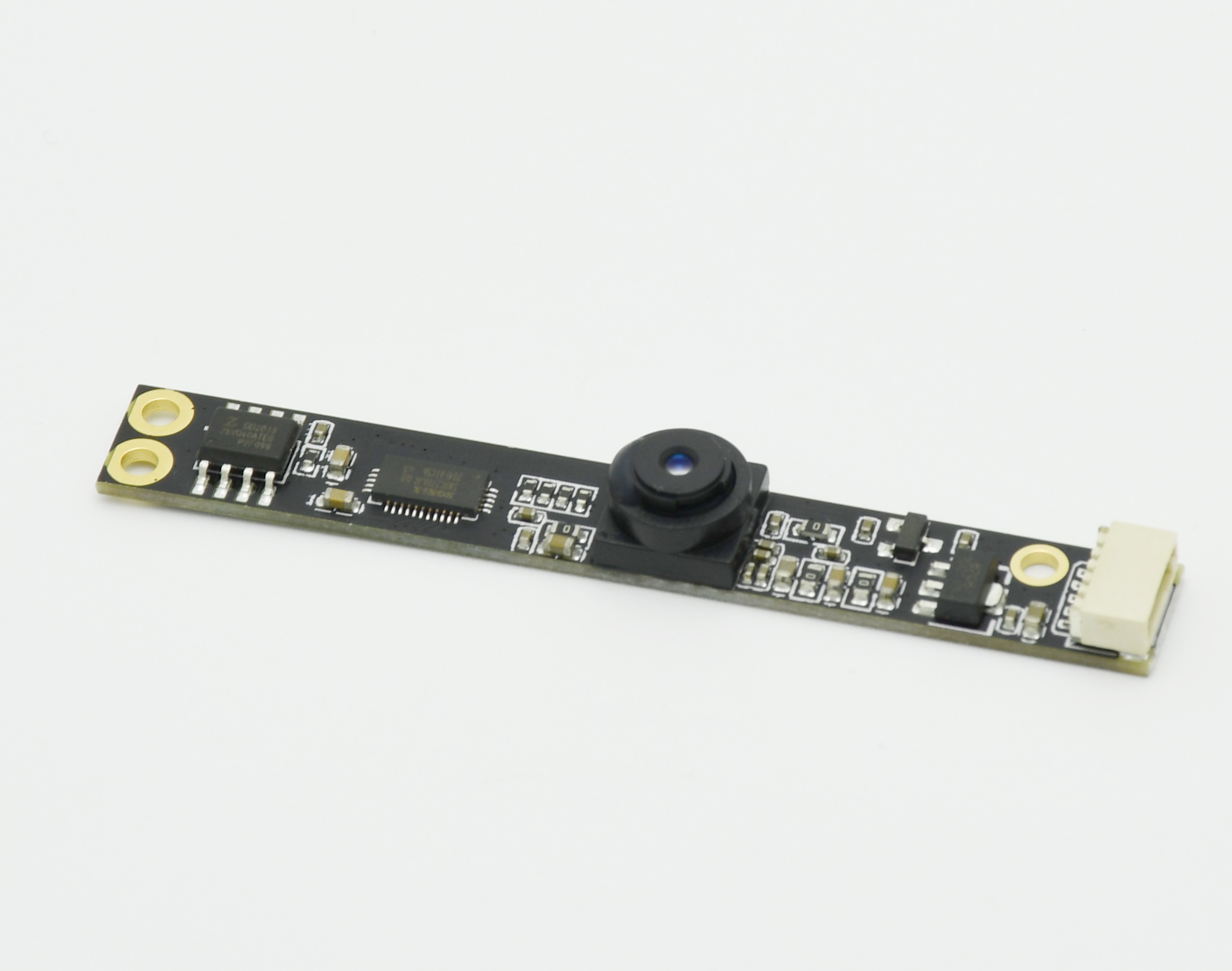

1MP USB Camera Module JSK-0A24-V3.0 - Low Cost, Wide Angle, UVC

产品型号:

Product Overview

The JSK-0A24-V3.0 (portrait) is a low-cost 1MP wide-angle USB camera module on a 1/4-inch CMOS sensor. It outputs 30fps@480P with 720P, VGA and QVGA formats over driver-free UVC.

Key Features

  • 1/4-inch CMOS sensor, 1MP
  • 30fps @ 480P - supports 720P/VGA/QVGA formats
  • Low cost wide-angle design, portrait orientation
  • UVC V1.1 compliant - USB 2.0/1.1, high-speed/full-speed auto switching

Target Applications

Cost-driven devices, portrait kiosks, entry-level wide-angle imaging.

Contact us to discuss your project requirements.

立即咨询
产品说明

产品描述

<p> JSK‐0A24‐V3.0/ 竖屏 </p> <p> 光学尺寸1/4”英寸COMS sensor </p> 传感器分辨率1280 (H) x 720 (V),UXGA<br /> 单位像素尺寸1.75um<br /> 彩色滤光片RGB Bayer pattem<br /> 快门类型电子滚动快门<br /> max.capture 帧速率30 fps@SVGA,30FPS/720p.<br /> 最大视频帧速率30fps@480P<br /> 视角D=142° H126° V91°<br /> 光圈2.4<br /> AEC /增益/白平衡自动<br /> 聚焦距离固定100cm<br /> 接口USB 2.0<br /> 电源DC 5V<br /> 尺寸(毫米) 60mm x 8rnm x 10.7mm 士0.2mm<br /> 工作温度‐20℃to +70°C<br /> 操作系统要求Windows XP, Windows Vista, Windows 7,android.5.1<br /> 最大像素率30Mp/s<br /> <p> ADC 的精度10‐bit </p> <p> <p> <img src="/Uploads/202112/61cd820f83568.jpg" /> </p> <p> <img src="/Uploads/202112/61cd821666f3d.jpg" /> </p> </p>
