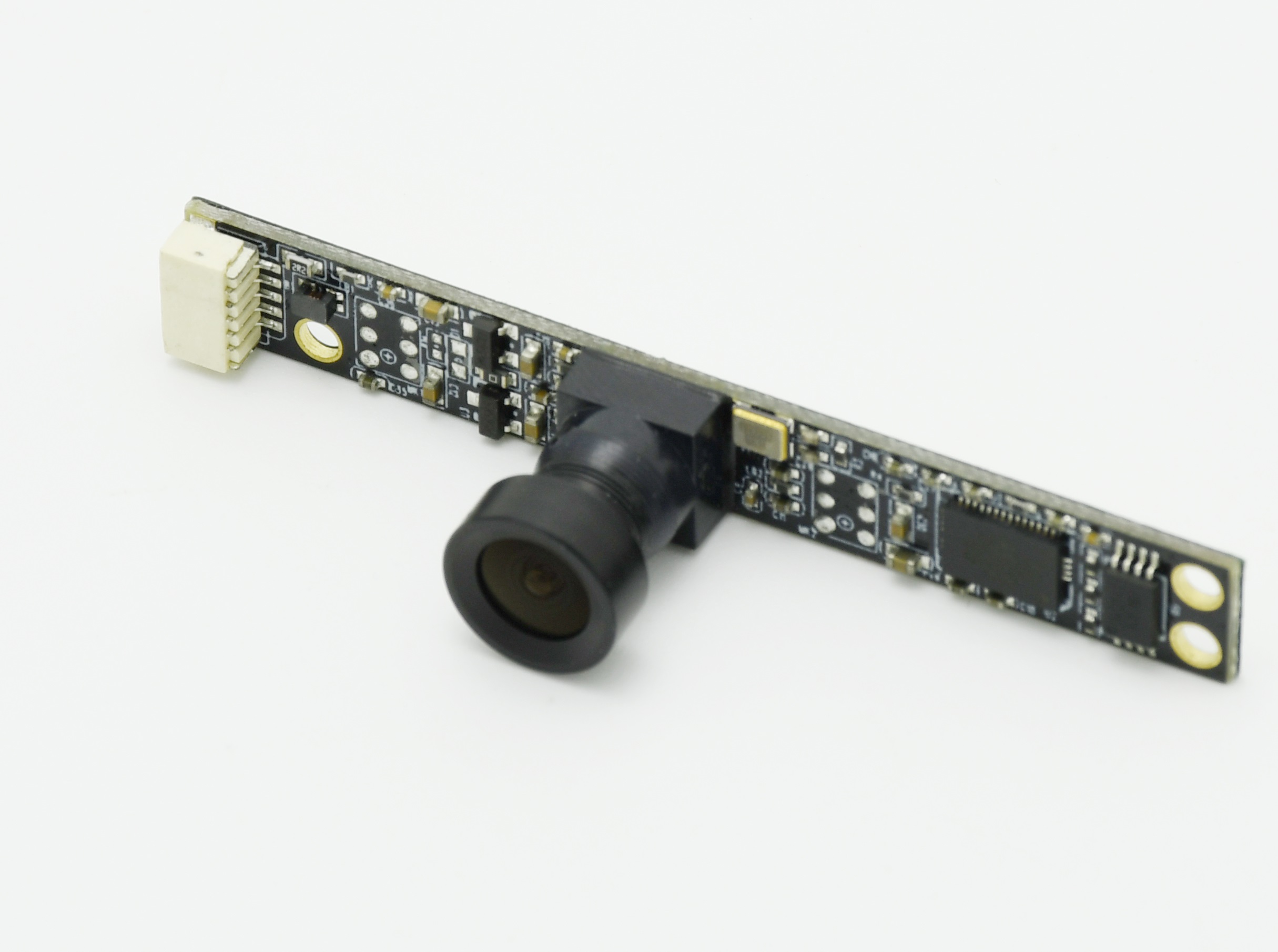

2MP USB Camera Module with MIC JSK-A41H56-V1.0 - HM2056, 720P

产品型号:

Product Overview

The JSK-A41H56-V1.0 is a 2MP USB camera module with built-in microphone. Built on the HM2056 1/5-inch sensor, it captures 720P at 30fps with audio - a compact audio-visual solution for communication devices.

Key Features

  • HM2056 sensor, 1/5-inch, 2MP
  • 30fps @ 720P
  • Built-in MIC - audio and video in one module

Target Applications

Video communication terminals, intercoms, compact AV devices.

Contact us to discuss your project requirements.

立即咨询
产品说明

产品描述

<p> JSK-A41H56-V1.0-6037 </p> <p> 光学尺寸1/5”英寸COMS sensor </p> 传感器分辨率1600 (H) x 1200 (V),UXGA<br /> 单位像素尺寸1.75um<br /> 彩色滤光片RGB Bayer pattem<br /> 快门类型电子滚动快门<br /> max.capture 帧速率10fps@full resolution, 30 fps@SVGA,30FPS/720p.<br /> 最大视频帧速率30fps@720P<br /> 视角108°<br /> 光圈2.4mm<br /> AEC /增益/白平衡自动<br /> 聚焦距离固定100cm<br /> 接口USB 2.0<br /> 电源DC DC 5V<br /> 尺寸(毫米) 60mm x 8mm x 13.3/‐0.2mm<br /> 工作温度‐10℃to +60°C<br /> 操作系统要求Windows XP, Windows Vista, Windows 7,android.<br /> 最大像素率28Mp/s<br /> <p> ADC 的精度10‐bit </p> <p> <br /> </p> <p> <img src="/Uploads/202112/61c69ab718f24.jpg" /> </p> <p> <img src="/Uploads/202112/61c69ab85b03f.jpg" /> </p> <p> <br /> </p>
