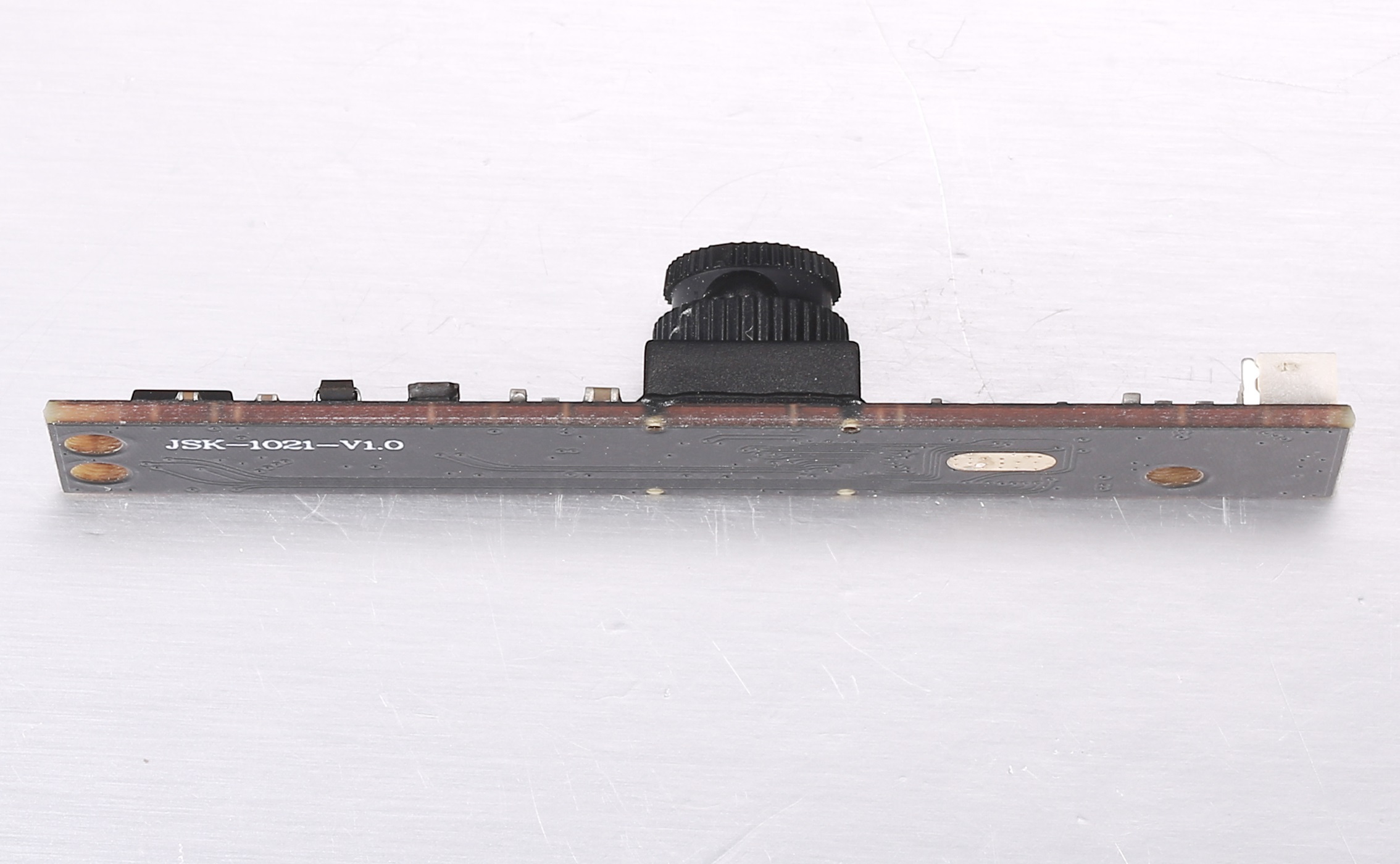

2MP USB Camera Module JSK-1021-V1.1 (C01) - PS5268, WDR 95dB

产品型号:

Product Overview

The JSK-1021-V1.1 (C01) is a 2MP USB camera module on the PS5268 1/2.7-inch sensor with 95dB wide dynamic range. It supports both landscape and portrait orientations - flexible mounting for slim and tall devices alike.

Key Features

  • 2MP, 1/2.7-inch PS5268 sensor
  • Wide dynamic range 95dB
  • Landscape and portrait support
  • USB camera module

Target Applications

Face recognition modules, orientation-flexible HD terminals, WDR imaging.

Contact us to discuss your project requirements.

立即咨询
产品说明

产品描述

<p> JSK-1021-V1.1 横屏 (C01) </p> <p> 光学尺寸1/2.7”英寸COMS sensor </p> 传感器分辨率1920 (H) x 1080 (V)<br /> 单位像素尺寸3.0*3.0um<br /> 彩色滤光片RGB Bayer pattem<br /> 快门类型电子滚动快门<br /> 最大帧速率30fps@1080P<br /> 视角73°<br /> 光圈2.2<br /> AEC /增益/白平衡自动<br /> 聚焦距离固定50-150cm<br /> 接口USB 2.0<br /> 电源DC DC 5V<br /> 尺寸(毫米) 60mm x 10mm x 9.5±0.2mm<br /> 工作温度-10℃ — +65°C<br /> 操作系统要求Windows XP, Windows Vista, Windows 7,android.<br /> 宽动态范围95DB<br /> <p> 焦距4.8 </p> <p> <p> <img src="/Uploads/202112/61c57457f2bd5.jpg" /> </p> <p> <img src="/Uploads/202112/61c5745aae1ff.jpg" /> </p> </p>
