5MP Night Vision USB Camera JSK-032HDR-V1.0 - OV5647, IR-CUT, LED

产品型号:

Product Overview

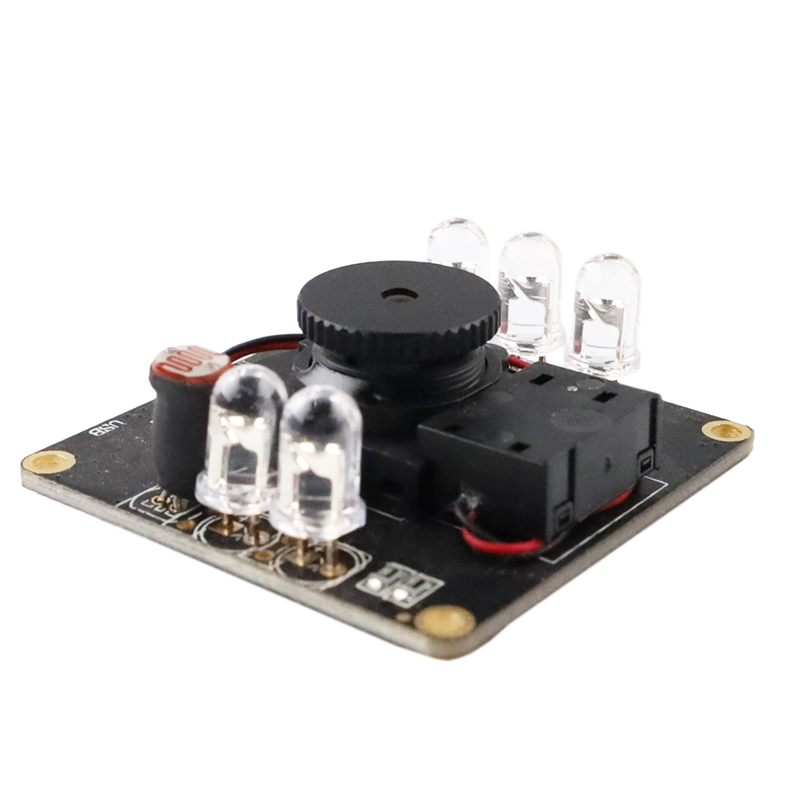

The JSK-032HDR-V1.0 is a 5MP mini camera module with true day/night capability. Built on the OV5647 1/2.5-inch sensor with IR-CUT switching and on-board LED lighting, it converts between color (day) and black-and-white (night) imaging automatically.

Key Features

  • OV5647 sensor, 1/2.5-inch, 5MP
  • IR-CUT day/night switching - color by day, B&W night vision
  • On-board LED night illumination
  • Mini camera module form factor

Target Applications

24-hour monitoring, night vision devices, compact security cameras.

Contact us to discuss your project requirements.

立即咨询
产品说明

产品描述

<p> JSK-032HDR-V1.0 (IR-CUT日夜切换) </p> <p> 光学尺寸1/2.5”英寸COMS sensor </p> 传感器分辨率2592 (H) x 1944 (V)<br /> 单位像素尺寸2.0*2.0um<br /> 彩色滤光片RGB Bayer pattem<br /> 快门类型电子滚动快门<br /> 最大帧速率30fps@1080P<br /> 视角86°<br /> 光圈2.7<br /> AEC /增益/白平衡自动<br /> 聚焦距离固定50‐150cm<br /> 接口USB 2.0<br /> 电源DC DC 5V ± 5%<br /> 尺寸(毫米) 38mm x 38rnm x 14.5±0.3mm<br /> 工作温度‐10℃ — +65°C<br /> <p> 操作系统要求Windows XP, Windows Vista, Windows 7,android.等 </p> <p> <img src="/Uploads/202112/61bea006e18dc.jpg" alt="" style="white-space:normal;" /> </p> <p> <img src="/Uploads/202112/61bea04ea8041.jpg" alt="" /> </p>
