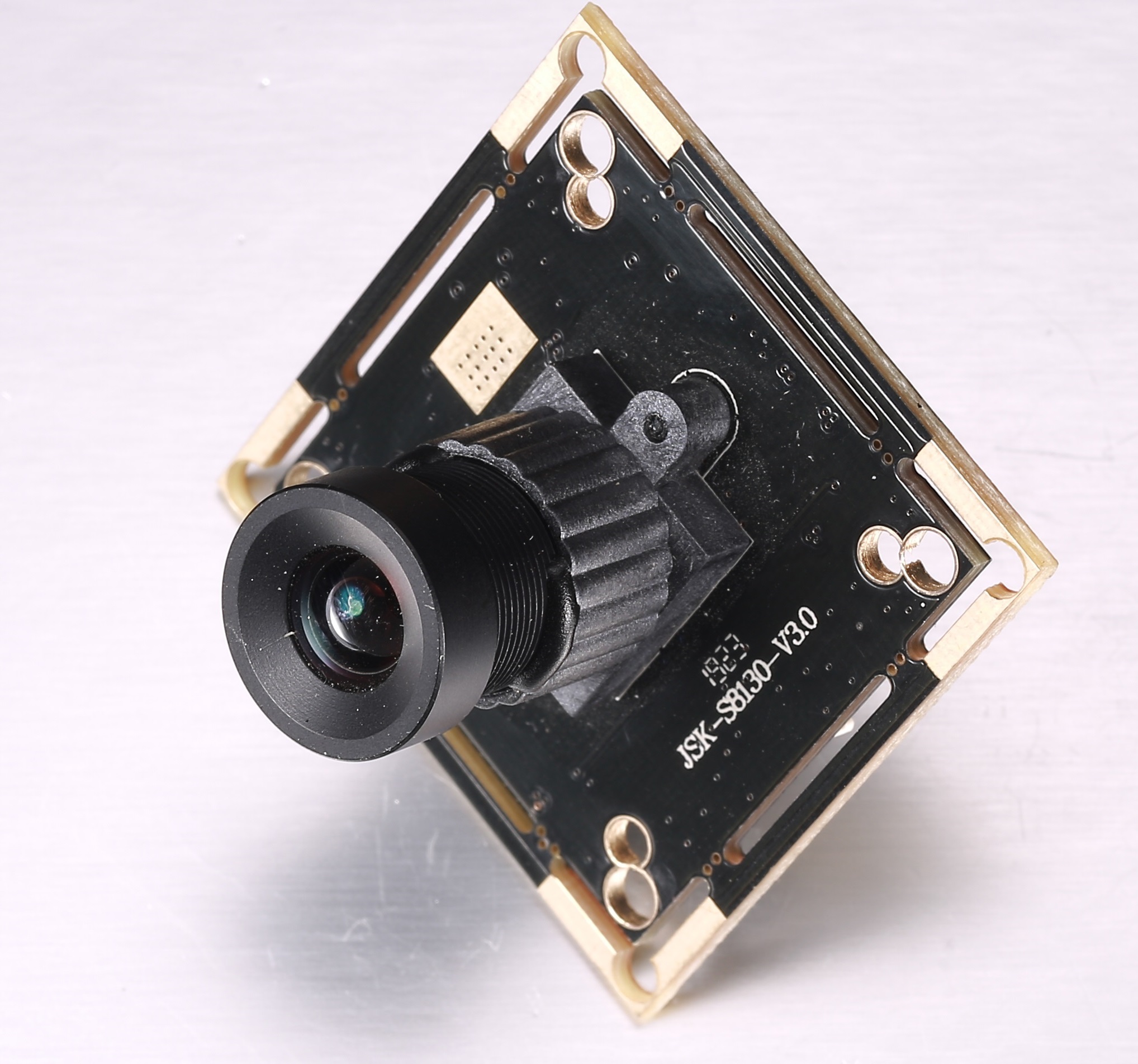

5MP UVC USB Camera Module JSK-S8130-V3.0G - Multi-Format Output

产品型号:

Product Overview

The JSK-S8130-V3.0G is a UVC-compliant USB camera module supporting 5MP output with a wide choice of formats - 1080P, 720P, VGA, QVGA, CIF and QCIF. USB 2.0 and 1.1 compliant with automatic high-speed/full-speed switching.

Key Features

  • 5MP resolution, multi-format output (1080P/720P/VGA/QVGA/CIF/QCIF)
  • UVC V1.1 compliant - driver-free on major OS
  • USB 2.0 / 1.1 with high-speed/full-speed auto switching

Target Applications

High-speed document scanning (high-shoot stands), HD imaging terminals, plug-and-play vision devices.

Contact us to discuss your project requirements.

立即咨询
产品说明

产品描述

<p> <span style="white-space:normal;">JSK ‐ S8130 ‐ V3.0G</span> </p> <p> 关键规格参数 </p> 参数规格<br /> 光学尺寸1/2.5”英寸COMS sensor <p> 传感器分辨率2592 (H) x 1944 (V) </p> 单位像素尺寸2.0*2.0um<br /> 彩色滤光片RGB Bayer pattem<br /> 快门类型电子滚动快门<br /> 最大帧速率30fps@2K<br /> 视角81°<br /> 光圈4.0<br /> AEC /增益/白平衡自动<br /> 聚焦距离固定50‐150cm<br /> 接口USB 2.0<br /> 电源DC DC 5V ± 5%<br /> 尺寸(毫米) 38mm x 38rnm x27.5±0.3mm<br /> <p> 工作温度‐10℃ — +60°C </p> <p> <p> <img src="/Uploads/202111/61a2e3b17a212.jpg" /> </p> </p>
