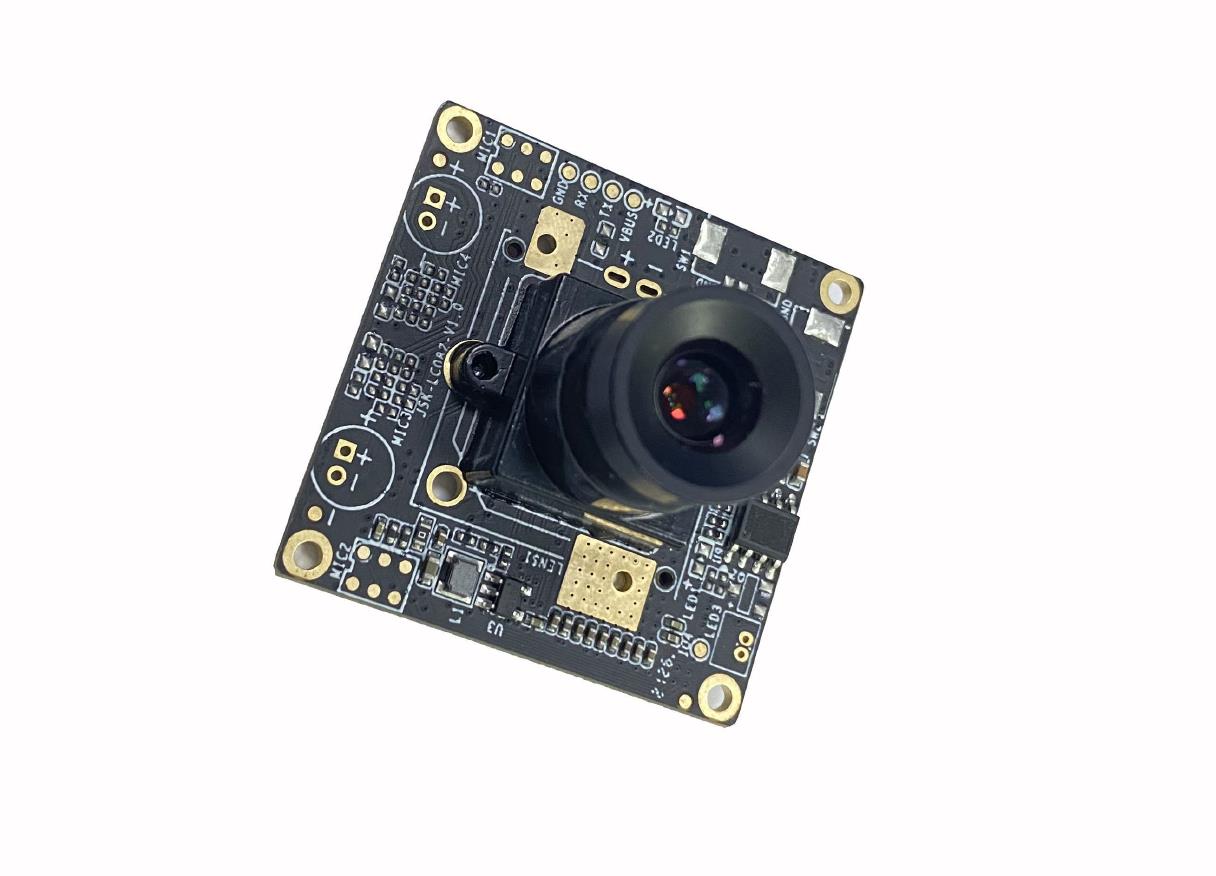

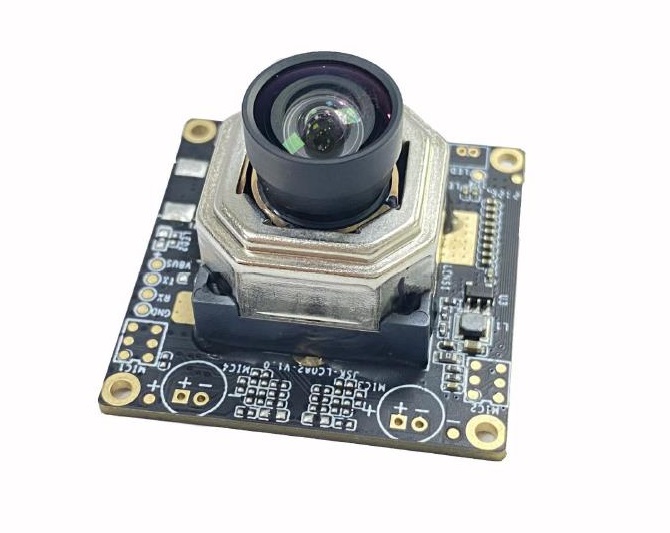

12MP 4K Autofocus USB Camera JSK-LC082-V1.0-AF - Sony IMX377, 30fps

Product Model:

Product Overview

The JSK-LC082-V1.0-AF is a 12MP autofocus USB camera module built on the Sony IMX377 1/2.0-inch CMOS sensor. It delivers 30fps with output formats from 4K and 2K down to 1080P/720P/VGA/QVGA/CIF - top resolution in a driver-free USB module.

Key Features

  • 12MP Sony IMX377 sensor, 1/2.0-inch CMOS
  • 30fps with autofocus
  • 4K/2K/1080P/720P/VGA/QVGA/CIF/QCIF output formats
  • UVC compliant - USB 2.0/1.1, high-speed/full-speed auto switching

Target Applications

High-resolution capture, 4K vision terminals, professional imaging devices.

Contact us to discuss your project requirements.

click to consult
Product Specification

Description

JSK-LC082-V1.0-AF

Optical size 1 / 2.0 " Inch COMS sensor
Sensor resolution 4056 (H) x 3046 (V)
Unit pixel size 1.55um x 1.55um
colour filter RGB Bayer pattem
Shutter type Electronic rolling shutter
Maximum frame rate 30fps @ 3840*2880
angle of view 56°
aperture 2.4
AEC / Gain / White balance Auto
Interface USB 2.0 & USB1.1
power DC 5V Sergeant 5%
Dimensions (mm) (L) 38mm x 38rnm x 29.3 Sergeant 0.2mm
working temperature -10℃ — +60°C
Operating system requirements Windows XP , Windows Vista , Windows 7,android.
Focal length 100 cm or optional self debugging.
