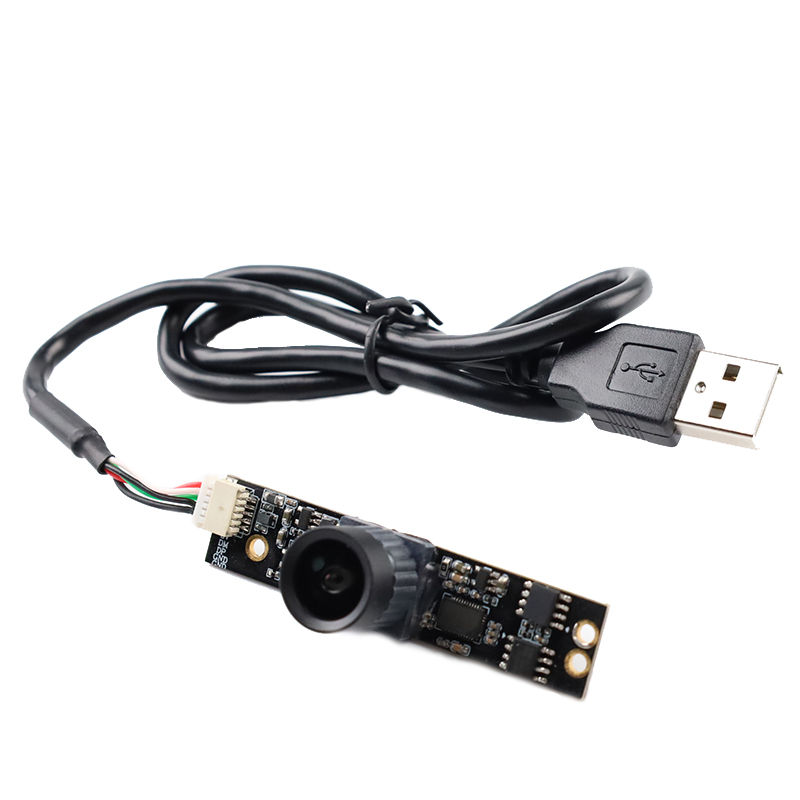

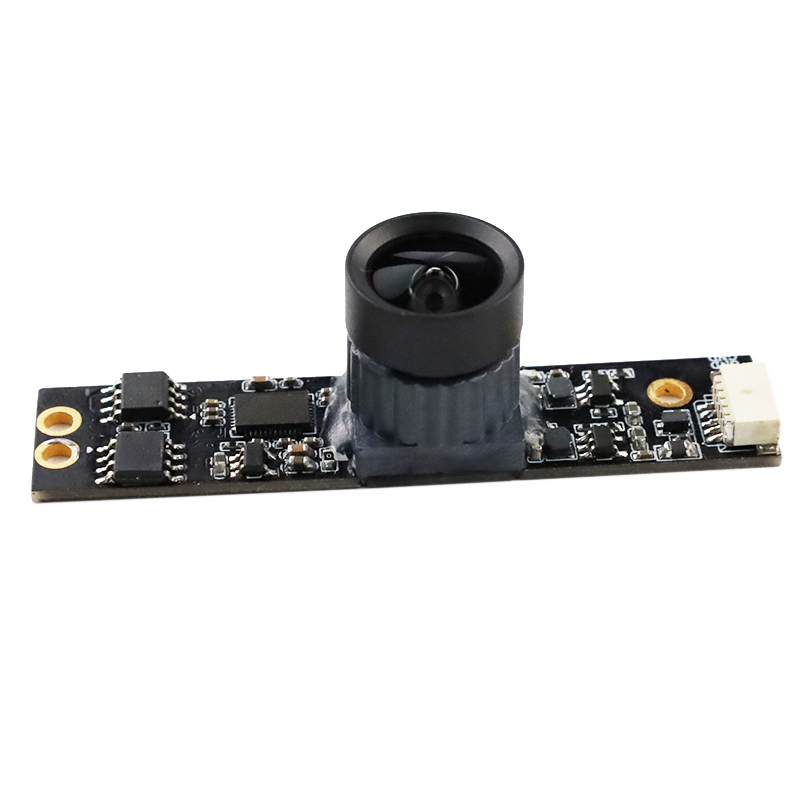

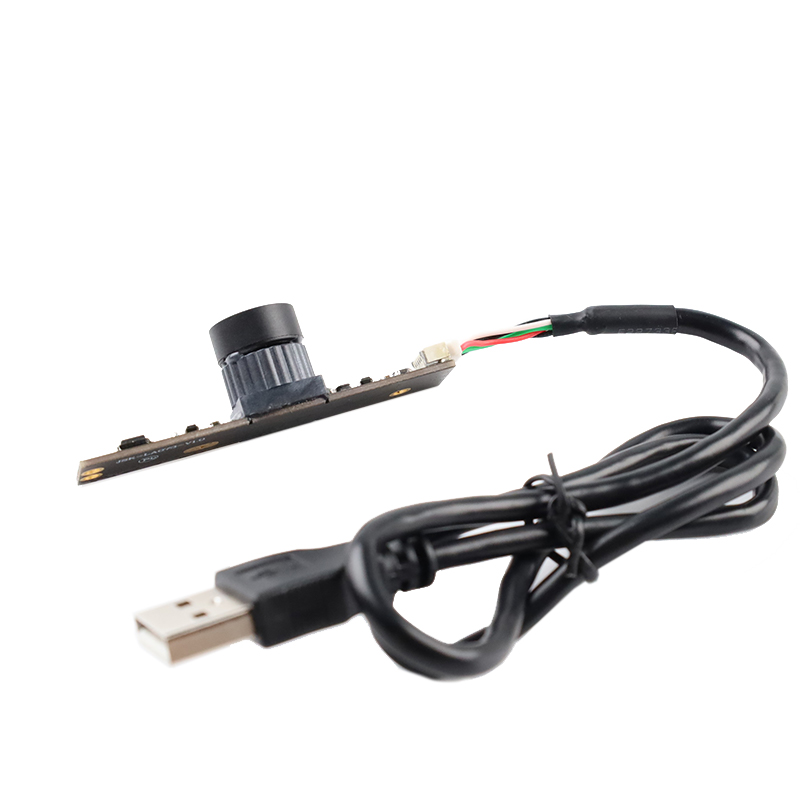

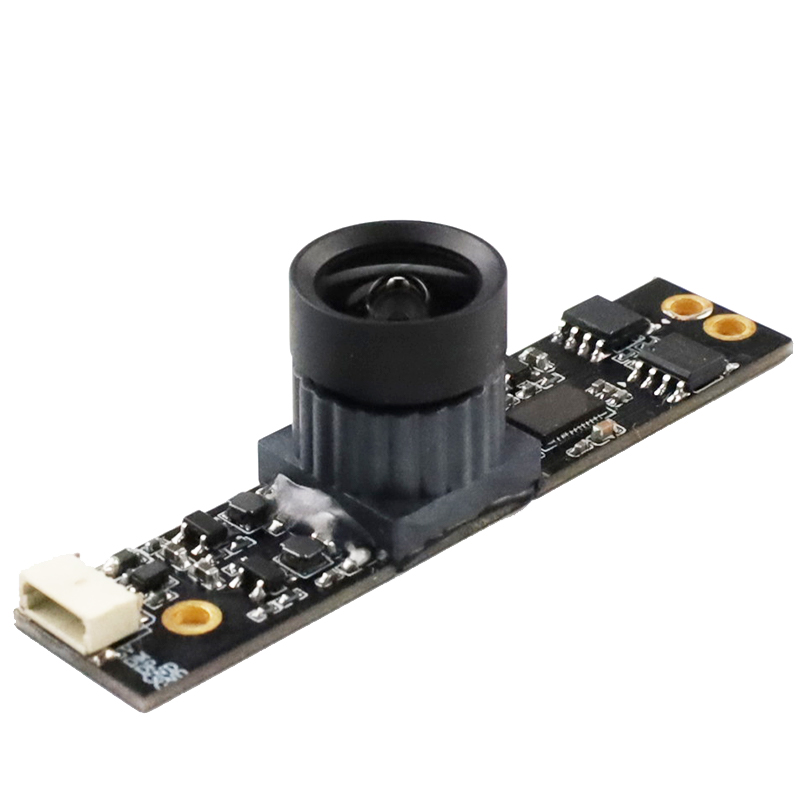

2MP USB Camera Module JSK-LA073-V1.0 (G05) - WDR 105dB, 2K, UVC

Product Model:

Product Overview

The JSK-LA073-V1.0 (G05) is a 2MP USB camera module with 105dB wide dynamic range. Based on a 1/2.7-inch CMOS sensor, it outputs 2K/1080P at 30fps with automatic exposure, automatic white balance and anti-flicker correction - clean, stable images in changing indoor light.

Key Features

  • 2MP, 30fps - 2K/1080P/720P/VGA/QVGA/CIF/QCIF output formats
  • Wide dynamic range 105dB
  • Auto exposure + auto white balance + anti-flicker
  • UVC V1.1, USB 2.0/1.1 high-speed/full-speed auto switching

Target Applications

Indoor recognition terminals, flicker-prone lighting sites, HD vision devices.

Contact us to discuss your project requirements.

click to consult
Product Specification

Description

JSK-LA073-V1.0(G05)

Optical size 1/2.7”inch COMS sensor

Sensor resolution 1920 (H) x 1080 (V),
Unit pixel size 3.0*3.0um
colour filter RGB Bayer pattem
Shutter type Electronic Rolling Shutter
Maximum frame rate 30fps@2K
angle of view D65° H52° V39°
aperture 2.4MM
AEC / Gain / White balance Auto
focusing distance Fixed 50-150cm
interface USB 2.0
power DC 5V ± 5%
Size (mm) 60mm x 13mm x 10±0.2mm
working temperature -10℃ — +65°C
Operating system requirements Windows XP, Windows Vista, Windows 7,android. So on
focal distance 5mm
power dissipation
Standby 30mA 士5mA

operate 165mA 士5mA @ 1920x1080 /30fps
