1MP USB Camera Module JSK-0A24-V1.0 - GC1064, 3.4mm Strip Lens

Product Model:

Product Overview

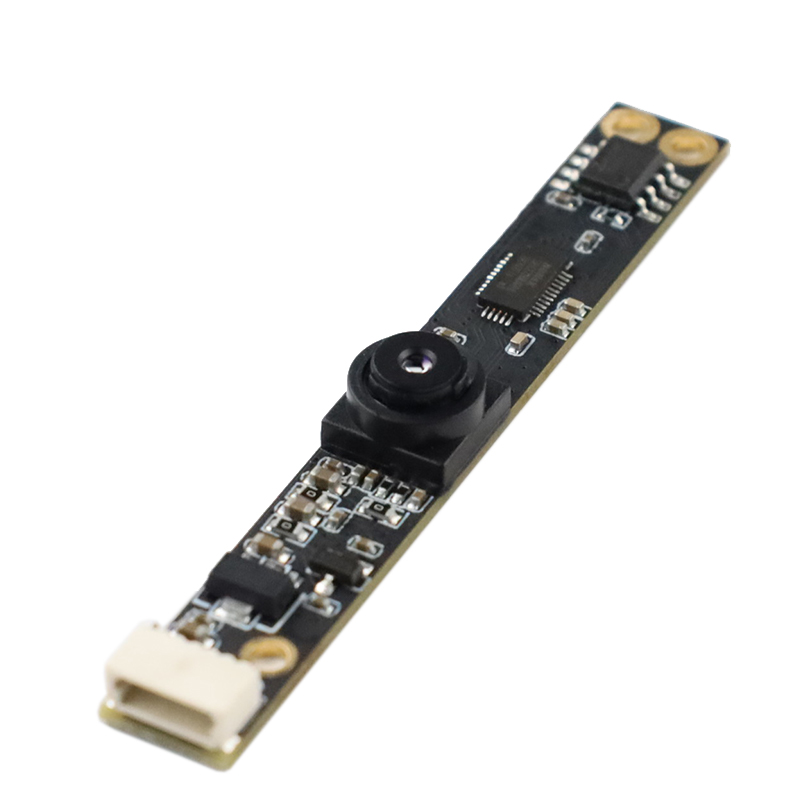

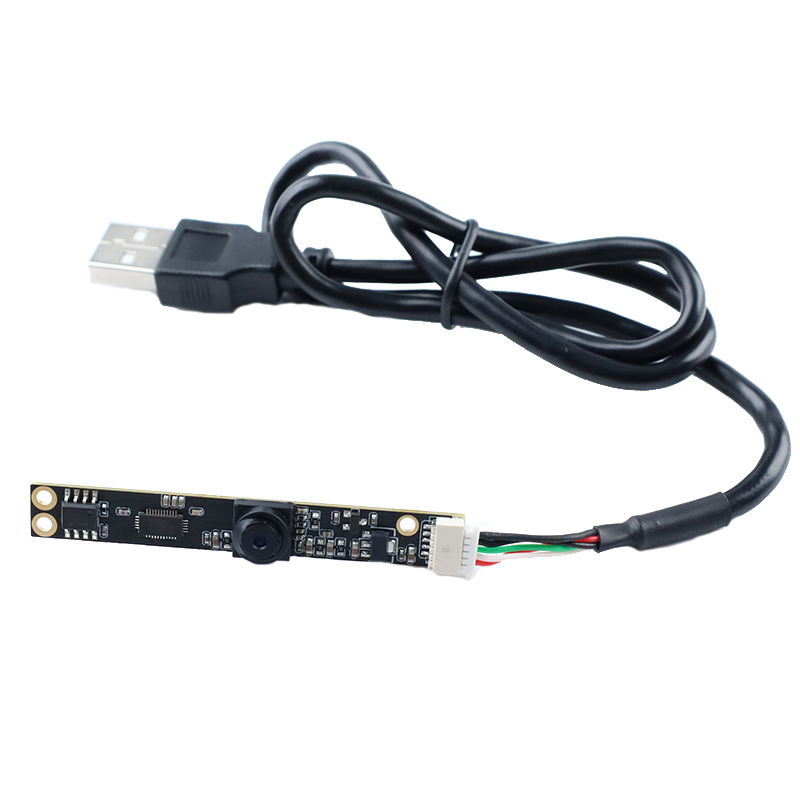

The JSK-0A24-V1.0 is a 1MP USB camera module in a long strip shape with a 3.4mm GC1064 lens. Designed for low-noise products, it outputs 720P / VGA at 30fps through a high-speed USB 2.0 interface.

Key Features

  • GC1064 sensor, 1/3.7-inch, 3.4mm lens
  • 1MP - 30fps @ VGA, 720P support
  • Long strip shape for slim devices
  • High-speed USB 2.0, low-noise design

Target Applications

Slim terminals, cost-sensitive HD devices, embedded capture.

Contact us to discuss your project requirements.

click to consult
Product Specification

Description

JSK-0A24-V1.0

Optical size 1 / 3.7 "inch COMS sensor

Sensor resolution 1280 (H) x 720 (V),
Unit pixel size 3.4um
Color filter RGB Bayer pattem
Shutter type electronic rolling shutter
Max.capture frame rate 10fps@full resolution, 30 fps@SVGA ,30FPS/720p.
Maximum video frame rate 30fps@VGA
Viewing angle 68 °
Aperture 2.4
AEC / gain / White Balance Auto
The focusing distance is fixed at 100cm
USB interface 2.0
Power supply DC 5V
Size (mm) 60mm x 10mm
Operating temperature 0 ° C to + 55 ° C
Operating system requirements: Windows XP, Windows Vista, Windows 7, Android
Maximum pixel rate 28mp / S

Accuracy of ADC 10 ‐ bit
