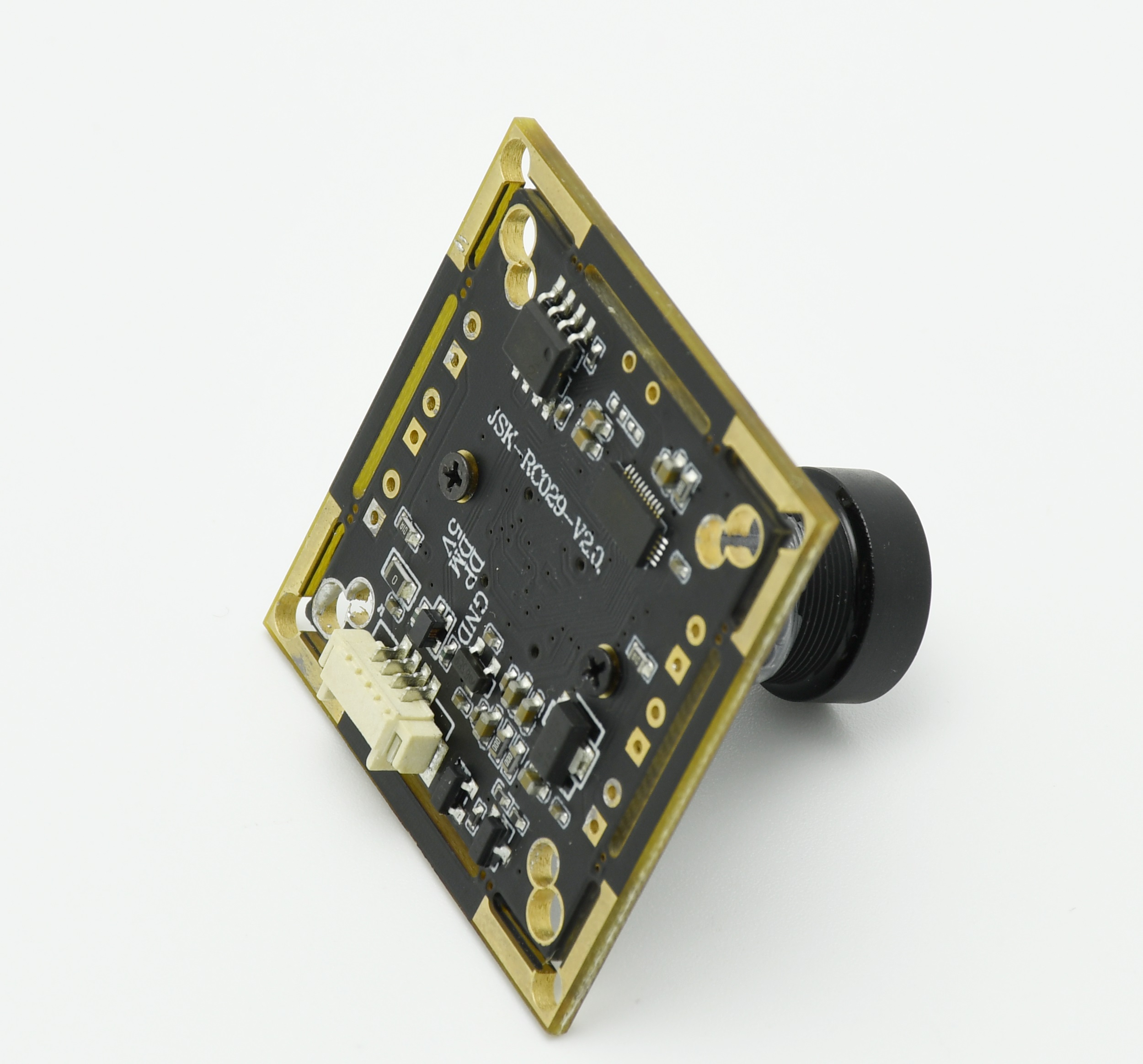

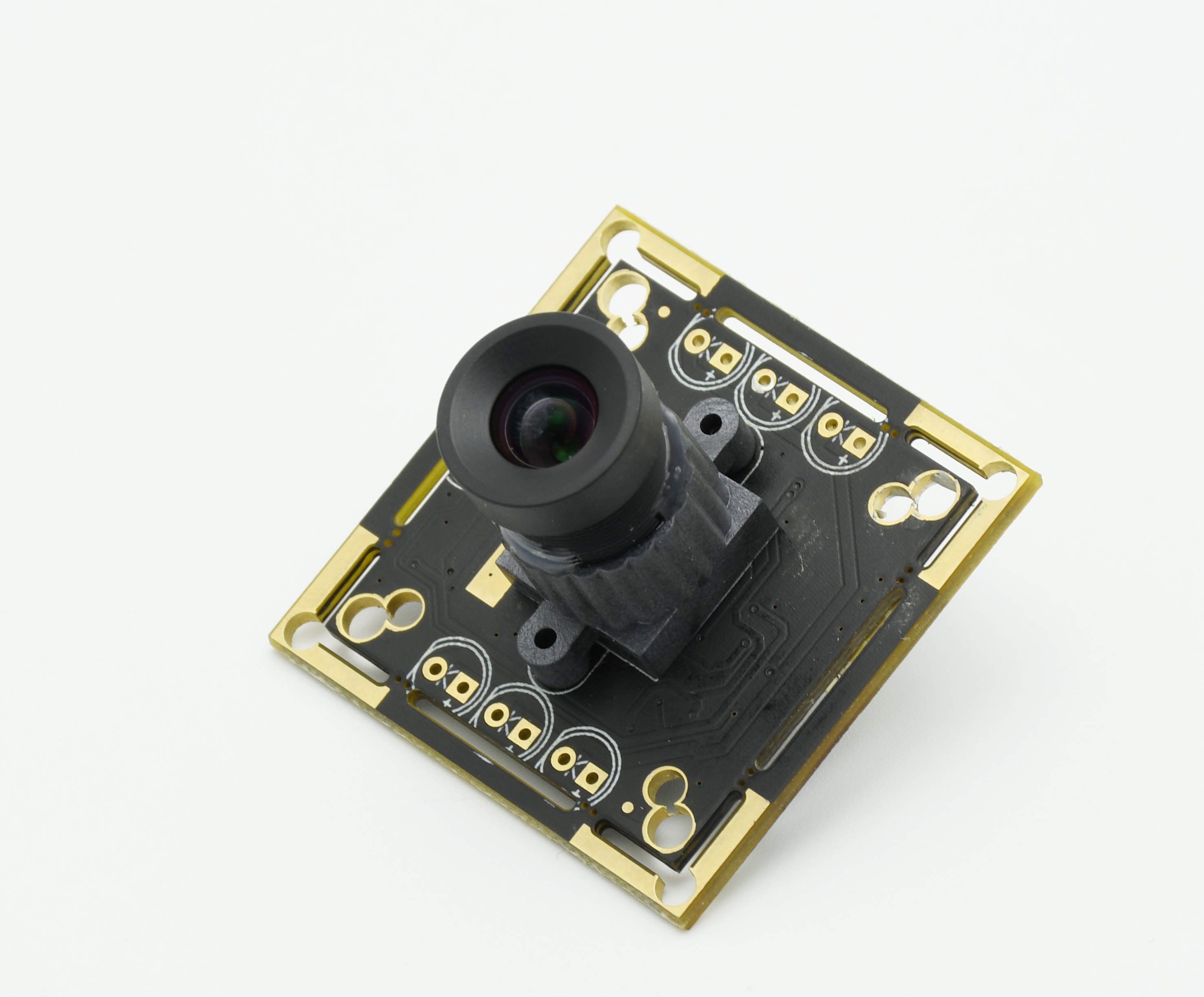

1MP USB Camera Module JSK-RC029-V2.0 - 1/4-inch, Square Board, VGA

Product Model:

Product Overview

The JSK-RC029-V2.0 is a compact square-board USB camera module. Its 1/4-inch CMOS sensor delivers 1MP imaging at 30fps VGA output - a tidy, board-level choice for embedded projects.

Key Features

  • 1/4-inch CMOS sensor, 1MP
  • 30fps @ VGA
  • Square board shape - easy enclosure design
  • USB output

Target Applications

Embedded vision, compact devices, general-purpose imaging.

Contact us to discuss your project requirements.

click to consult
Product Specification

Description

JSK-RC029-V2.0

Optical size 1 / 4 "inch COMS sensor

Sensor resolution 1280 (H) x 720 (V),
Unit pixel size 3.4um
Color filter RGB Bayer pattem
Shutter type electronic rolling shutter
Max.capture frame rate 10fps@full resolution, 30 fps@SVGA ,30FPS/720p.
Maximum video frame rate 30fps@VGA
Viewing angle 68 °
Aperture 2.4
AEC / gain / White Balance Auto
The focusing distance is fixed at 100cm
USB interface 2.0
Voltage DC 5V ± 5%
Dimension (mm) (L) 38mm x38mm x6.8 ± 0.3
Operating temperature: - 20 ° C to + 65 ° C
Operating system requirements: Windows XP, Windows Vista, Windows 7, Android
Maximum pixel rate 28mp / S
EFL 3.8 mm
Power consumption
Standby 20mA ± 5mA

Operation 85mA ± 5mA @ 1280x720 / 30fps
