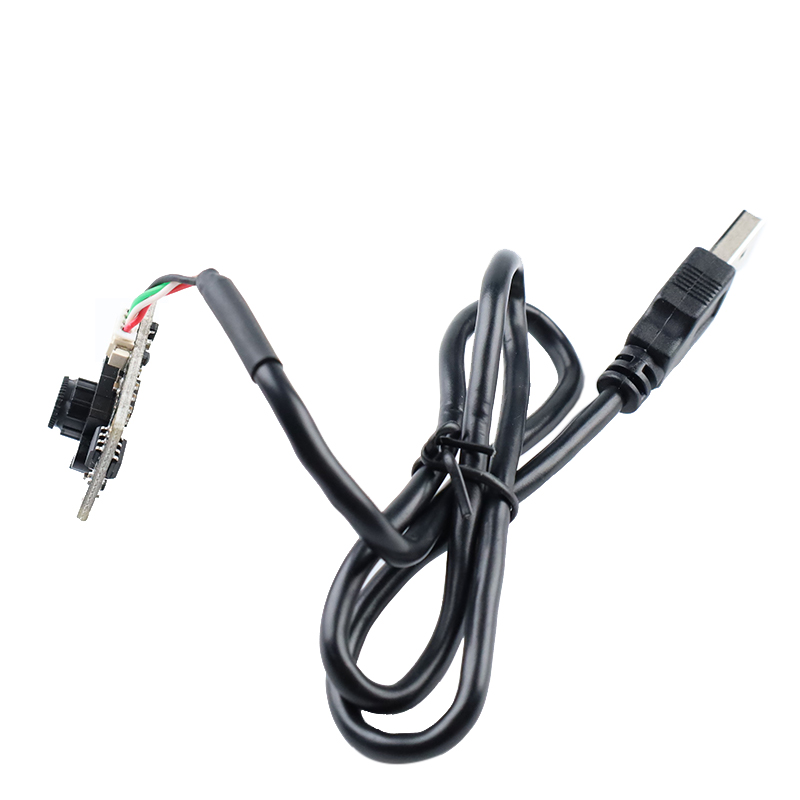

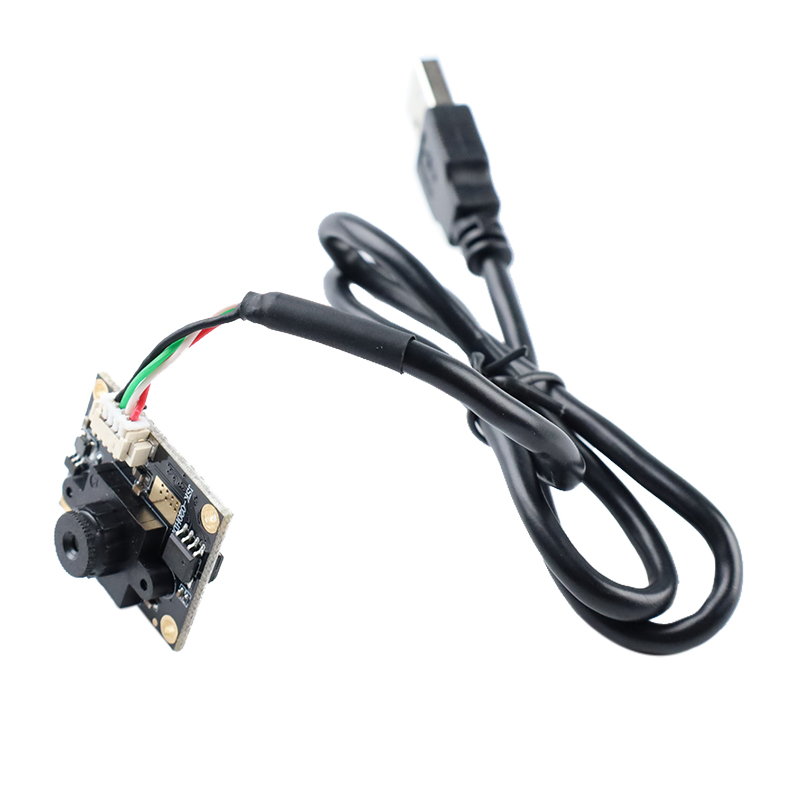

5MP USB Camera Module JSK-020HDR-V1.0 - WDR 105dB, 30fps@1080P

Product Model:

Product Overview

The JSK-020HDR-V1.0 is a 5MP USB camera module with 105dB wide dynamic range. It outputs 2K resolution at 30fps over a high-speed USB 2.0 interface with automatic exposure - sharp, balanced images even in high-contrast scenes.

Key Features

  • 5MP with 2K resolution, 30fps@1080P
  • Wide dynamic range 105dB - detail in highlights and shadows
  • 73-degree lens field of view
  • High-speed USB 2.0 with automatic exposure

Target Applications

Backlight-resistant imaging, face recognition terminals, HD scanning and vision devices.

Contact us to discuss your project requirements.

click to consult
Product Specification

Description

JSK-020HDR-V1.0 High performance packaging technology (special)


Patent), which realizes the compression size of this module with high reliability. It also has a wide range of applications


Dynamic range by implementing high sensitivity and low noise. This product can output drawings of different sizes


For example, it supports 5 megapixel output, 1080p, 720p, VGA, CIF, QVGA, etc.

USB specification compliance


• USB 2 and 1.1 compliance


• USB video v1.1 compliance (UVC)


• USB high speed, full speed automatic switching


• support 2592 * 19441080p, 720p, VGA, QVGA, CIF, QVGA and QCIF formats


Output.


• support wide dynamic, wide dynamic range 105dB


• auto exposure (exposure).


• automatic white balance (AWB)


• automatic flicker correction.


• color correction.
