HDR Binocular USB Camera JSK-S8130X2-V2.0 - 2MP 1080P, Face Measure

产品型号:

Product Overview

The JSK-S8130X2-V2.0 (B01) is an HDR binocular camera module delivering 2MP at 1920x1080 and 30fps on 1/3-inch CMOS sensors. Its binocular algorithm identifies and locates key facial feature points and computes spatial information such as pupil distance and nose height with error under 1mm.

Key Features

  • HDR binocular imaging - 1920x1080 @ 30fps, 1/3-inch CMOS
  • High-precision face measurement - spatial error under 1mm
  • Feature-point location for eyes, ears, nose and distances

Target Applications

3D face data capture, biometric identification, precision facial measurement.

Contact us to discuss your project requirements.

立即咨询
产品说明

产品描述

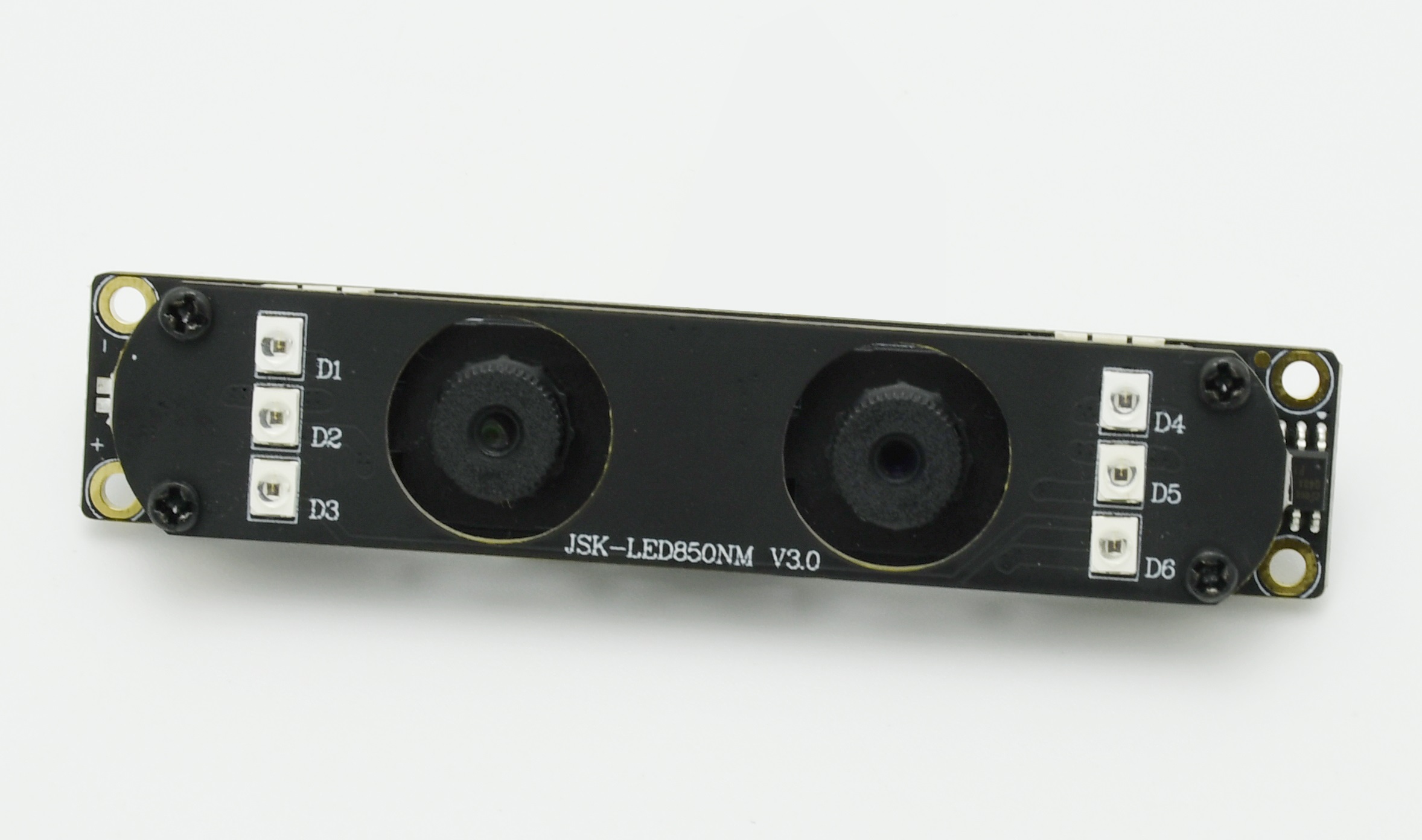

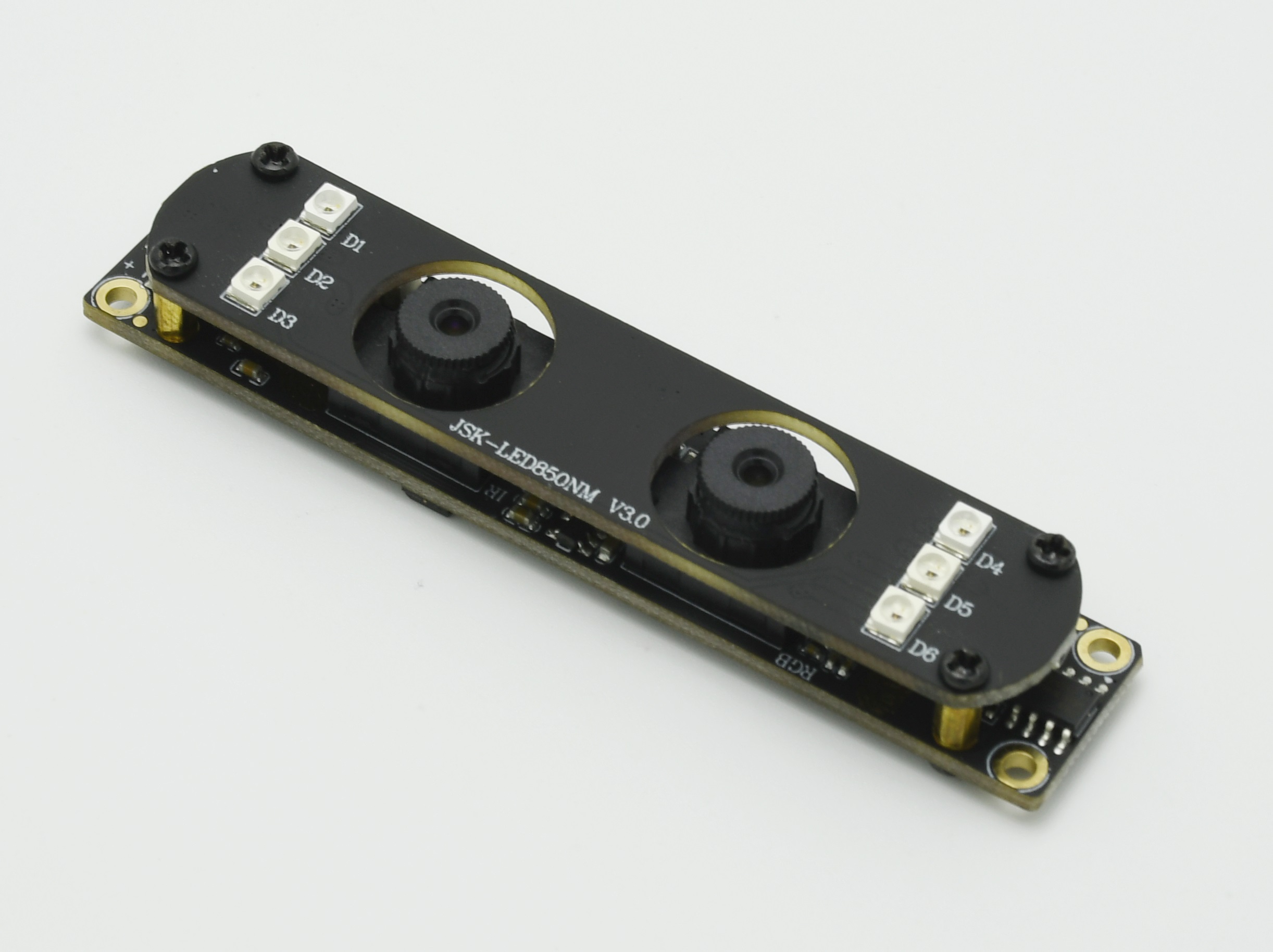

<p> JSK-S8130X2-V2.0(B01) </p> <p> IR‐LED Wavelength(红外灯光谱) 850nm </p> Dimensions(PCBA)(PCBA 尺寸)mm 80*16*18±0.5<br /> Operating temperature(℃)(稳定工作温度)‐10~60 ℃<br /> Storage temperature(℃)(储存温度&amp;湿度)‐10~70 ℃/0~90RH<br /> Compliance(产品标准) USB‐IF WHQL CE RoHS<br /> Lens Mount(可搭配镜头类型) 3.6MM/4.7MM/6MM<br /> Lens view (默认镜头) M12<br /> 快门类型电子滚动快门<br /> 视角86°<br /> 光圈2.8<br /> AEC /增益/白平衡自动<br /> <p> 聚焦距离固定50‐150cm </p> <p> <br /> </p> <p> <img src="/Uploads/202112/61c2c689dd0bd.jpg" /> </p> <p> <img src="/Uploads/202112/61c2c68b38718.jpg" /> </p> <p> <br /> </p>
