Industrial 2MP Binocular USB Camera JSK-SC065X2-V1.1 - AR0230, UVC

Product Model:

Product Overview

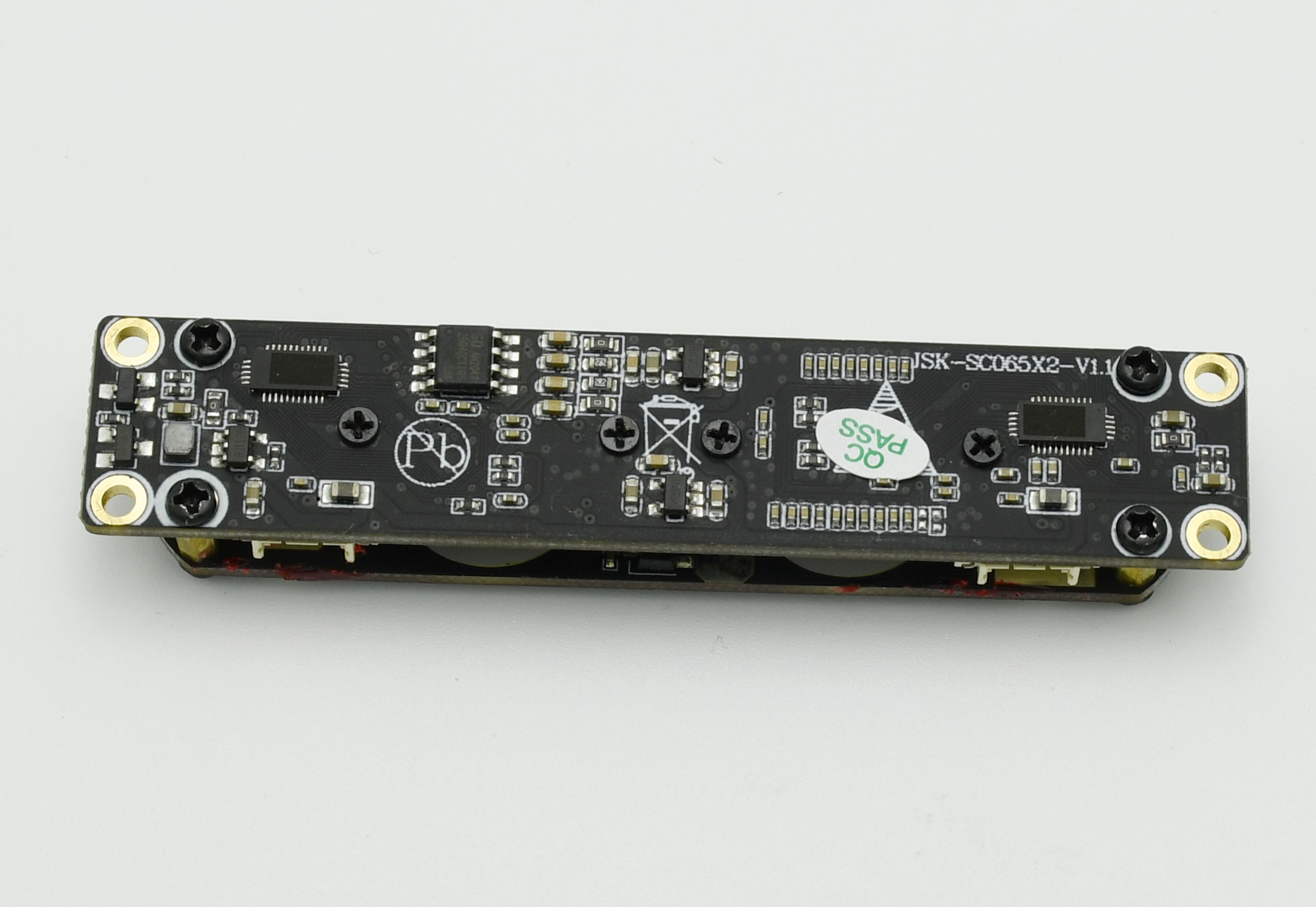

The JSK-SC065X2-V1.1 (B01) is an industrial-grade binocular liveness detection camera. Dual AR0230 + OV2735 sensors deliver 2MP wide-dynamic HD imaging with up to 30fps and no image smear - stable stereo capture for demanding applications.

Key Features

  • Binocular AR0230 + OV2735 sensors, 1/2.7-inch
  • 2MP wide dynamic, up to 30fps, no smear
  • UVC architecture - compatible with Windows XP/7/8.1/10/Vista, Mac, Linux 2.6.2+ (UVC)
  • USB 2.0 / 1.1 compliant

Target Applications

Industrial binocular liveness detection, face anti-spoofing, stereo vision.

Contact us to discuss your project requirements.

click to consult
Product Specification

Description

JSK‐SC065X2‐V1.1 (B01)

Scanning System(扫描方式) Progressive scan

Scanning Frequency(H)(扫描频率) 30HZ 25HZ
Scanning Frequency(V) 50HZ 50HZ
Image Sensor(图像感光片) 1/2.7” CMOS 1/2.7” CMOS Aptina
Effective Pixels(有效像素) 1920X1080 1920X1080
Pixel size(像素点大小) 3.0umX3.0um 3.0umx3.0um
IR‐LED Wavelength(红外灯光谱) 850nm
Dimensions(PCBA)(PCBA 尺寸)mm 80*16*18.2 ± 0.3
Operating temperature(℃)(稳定工作温度)‐10~65 ℃
Storage temperature(℃)(储存温度&湿度)‐10~70℃/0~90RHCompliance(产品标准) USB‐IF WHQL CE RoHS
Lens Mount(可搭配镜头类型) 3.6MM/4.7MM/6MM
Lens view (默认镜头) M12
快门类型电子滚动快门
视角92°
光圈2.0
AEC /增益/白平衡自动

聚焦距离固定50‐150cm
