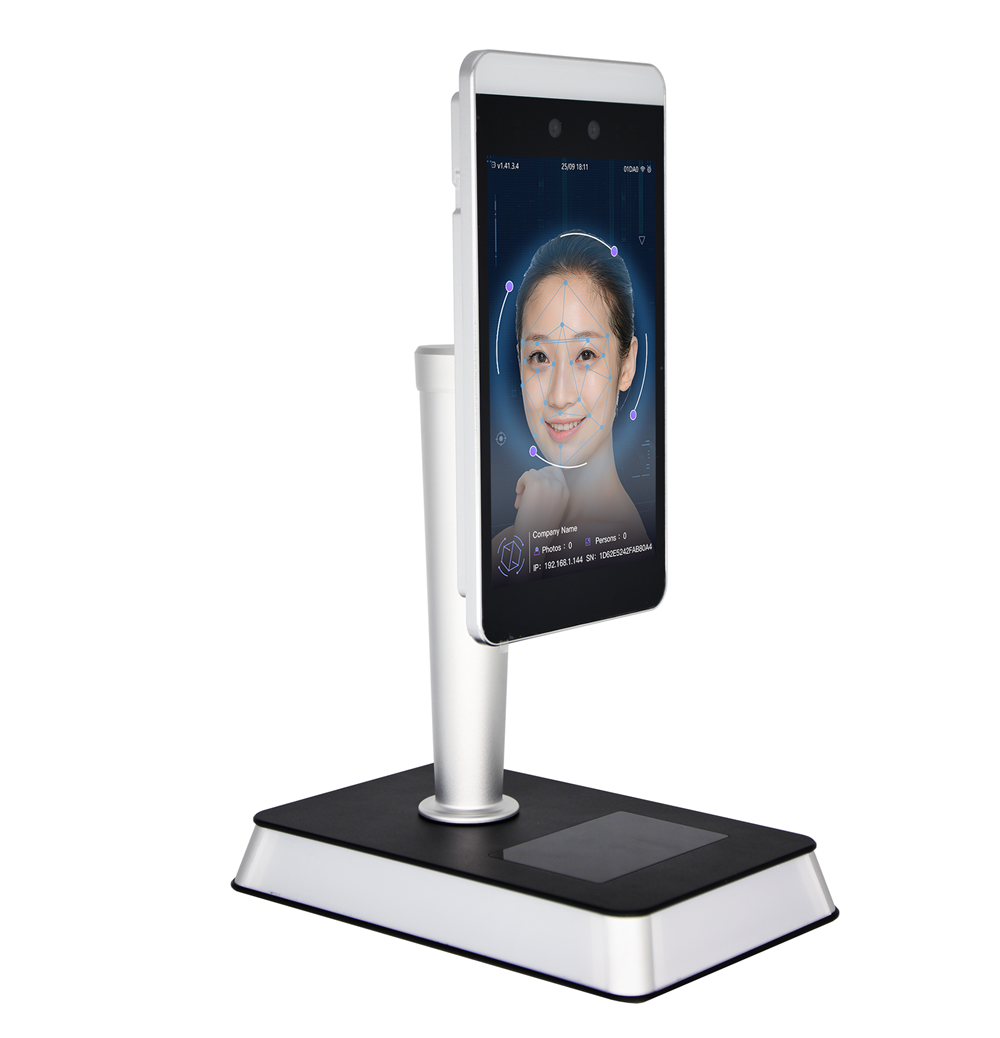

PB-08A00 (no touch) /PB-08AC0 (with touch) flat face recognition terminal adopts all aluminum alloy shell; waterproof, dustproof and high temperature resistance; 8-inch LCD screen, super quad core CPU; binocular RGB + infrared camera; white, green, red three-color fill light, dual infrared fill light; can realize face detection, face recognition, attribute detection, living detection, etc., which is widely used in smart gold Integration, smart city, smart campus, smart construction site, smart Park, smart power, smart environmental protection, smart fire protection and management projects.

Core parameters (3288 / 3399)


CPU rk3288, quad core arm-a17, 1.8GHz


GPU Mali-T764


Storage capacity: 2G memory, 8g storage


CPU rk3399, six core dual core arm-a72 + four core arm-a53, 2.0GHz


GPU Mali-T764


Storage capacity: 2G memory, 8g storage


parts


Fill light, infrared, led fill light


Card reader module optional IC reader


Network module supports wired, wireless (2.4gwifi), wireless (4G network card, USB external connection)

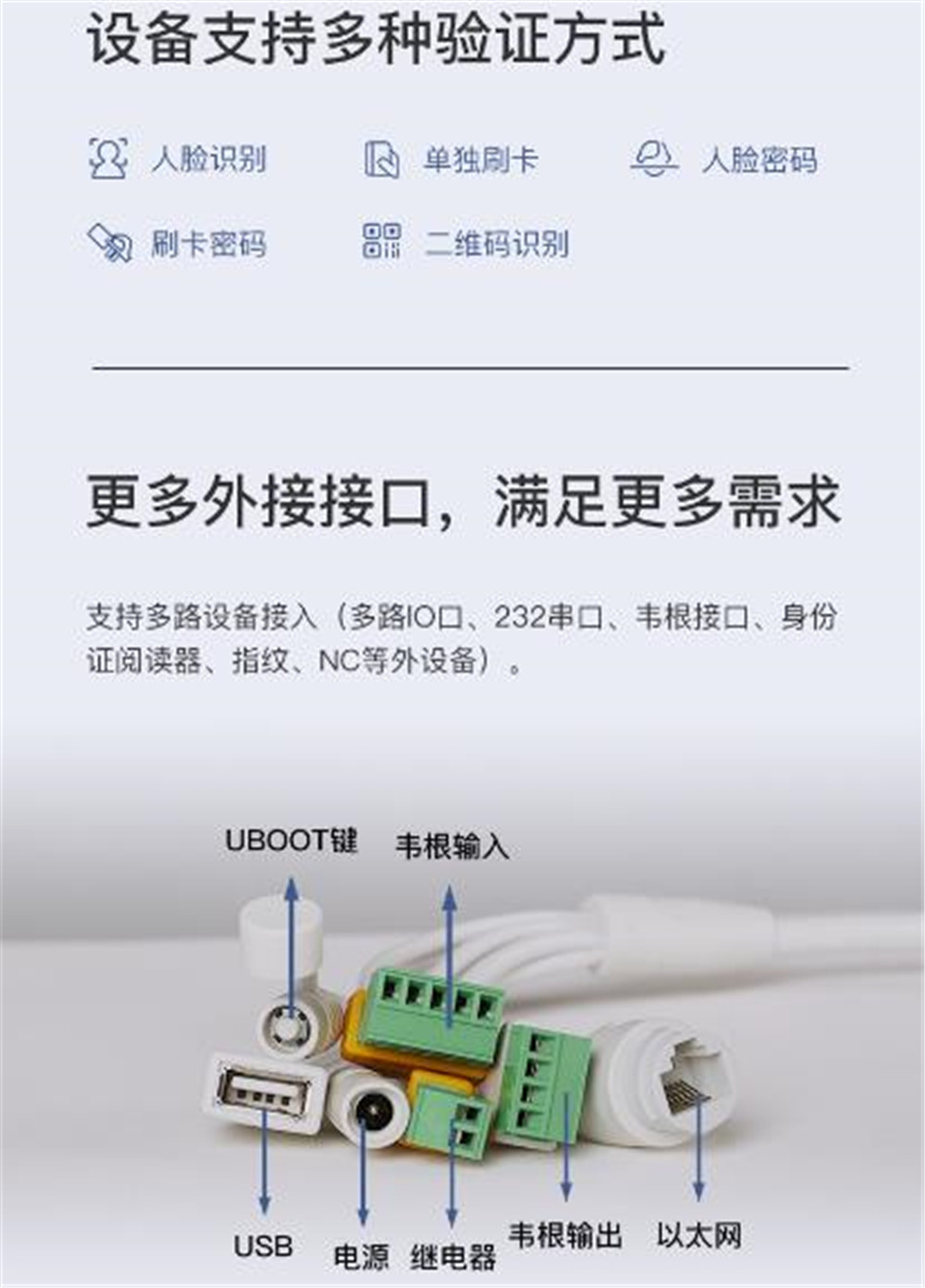

Interface


Audio 8 euro 1.5W speaker output


Video: built in hdmi2.0 type-A interface, 1 Mipi interface, not external connection


Two USB interfaces USB2.0 interfaces (one of which can switch OTG interface)


Serial communication interface RS232 serial port


Relay output 2.5mm terminal 3P


Wigan interface 2.5mm terminal 2p, supporting Weigan 26 / 34 input / output


Reset interface the exposed wire has a reset button


Wired network interface 2.5mm terminal 4P


function


Face detection supports monitoring and tracking 5 people at the same time


1: Top 1 hit rate of n face recognition is 99.9%


1: More than 99% of 1 person to certificate ratio


Stranger detection support


Recognition distance configuration support


UI interface support


Remote device upgrade support


Deployment mode: support the use of public network and local area network


General parameters


Protection grade: ip42, certain dust and water proof function


Power supply: DC12V – 2A (± 10%)


Working temperature - 10 ℃ ~ 60 ℃ (thermostat optional)


Working humidity: 10% ~ 90%


Power consumption: 10W Max


Installation mode: column installation / wall mounting type


Equipment size: 24.5cm * 13.5cm * 1.8cm


Weight ≈ 2kg
